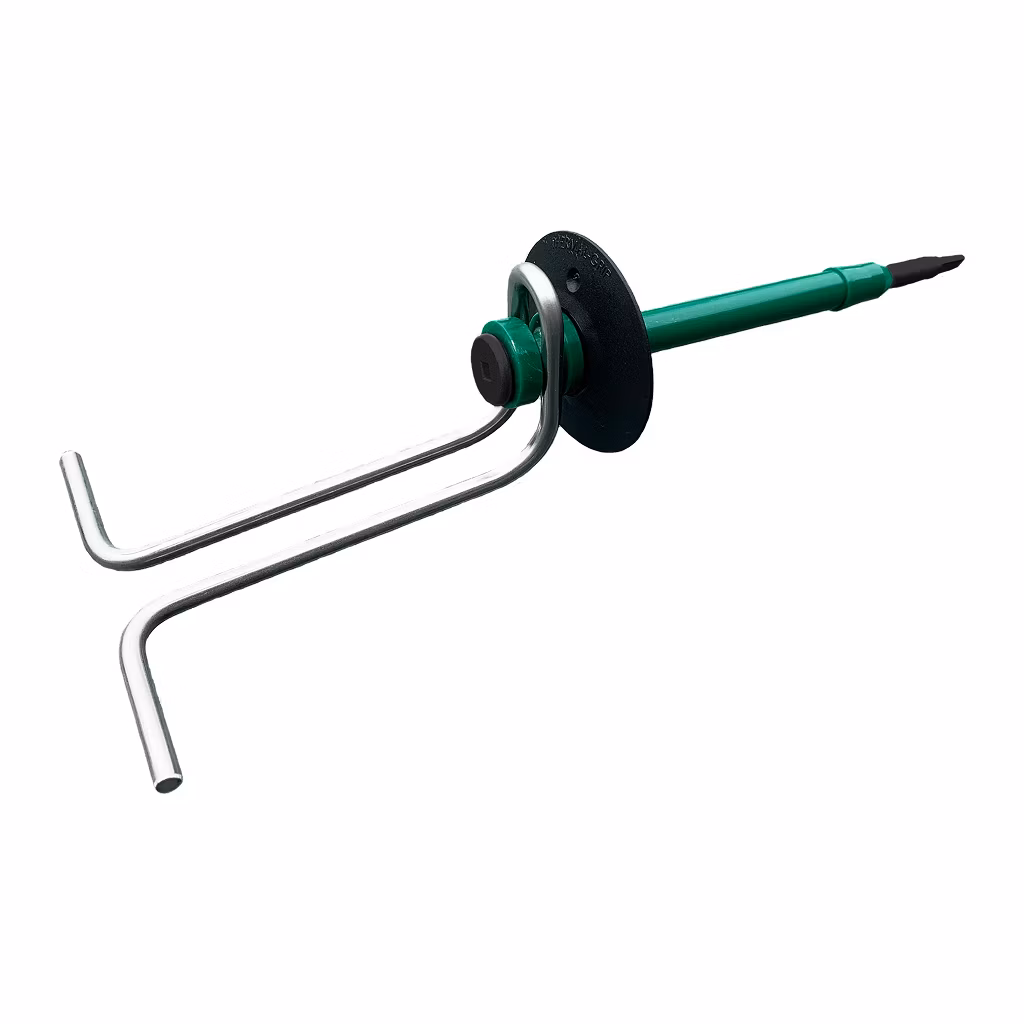

Thermal-Grip® Masonry Veneer Anchor
What it does
The Thermal-Grip MVA (Masonry Veneer Anchor) anchors brick veneer back to steel-stud, wood-stud or masonry walls through a layer of continuous insulation. The polycarbonate barrel keeps the wire tie off the structural screw, cutting thermal bridging, and its Wedge Seal seals the penetration through the air and water-resistive barrier behind the insulation.
What's included
- 2 in Thermal-Grip brick-tie washer
- Polycarbonate barrel with Wedge Seal
- SIPLD screw for light-gauge steel, wood or masonry
- Two T-30 driver bits per box
Box of 250. Choose the anchor length (1 to 4 in) to match the layers the barrel passes through: the insulation plus any gypsum sheathing.
Optional add-ons
Wire ties are not included. Tick them beside Add to Cart or buy them separately. Every tie fits every anchor length; choose the tie length for your air gap.

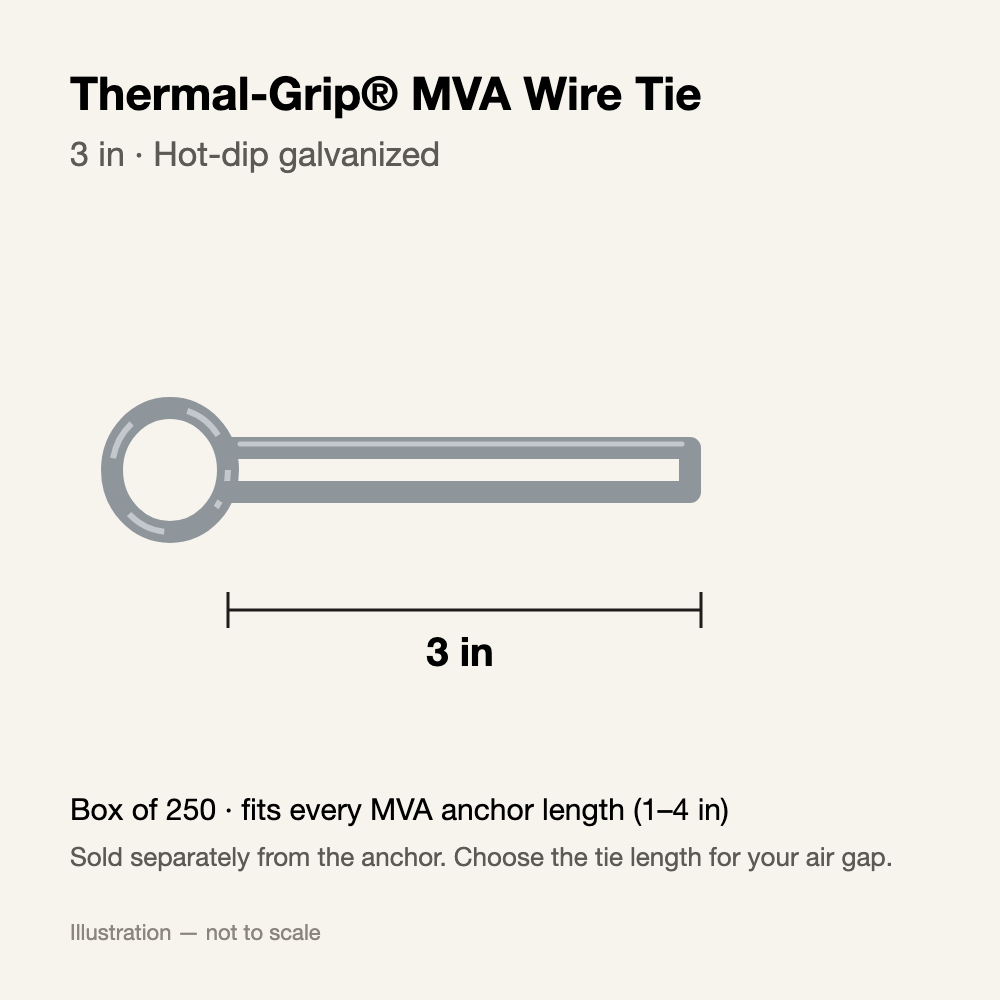

- 3 in wire tie, hot-dip galvanized

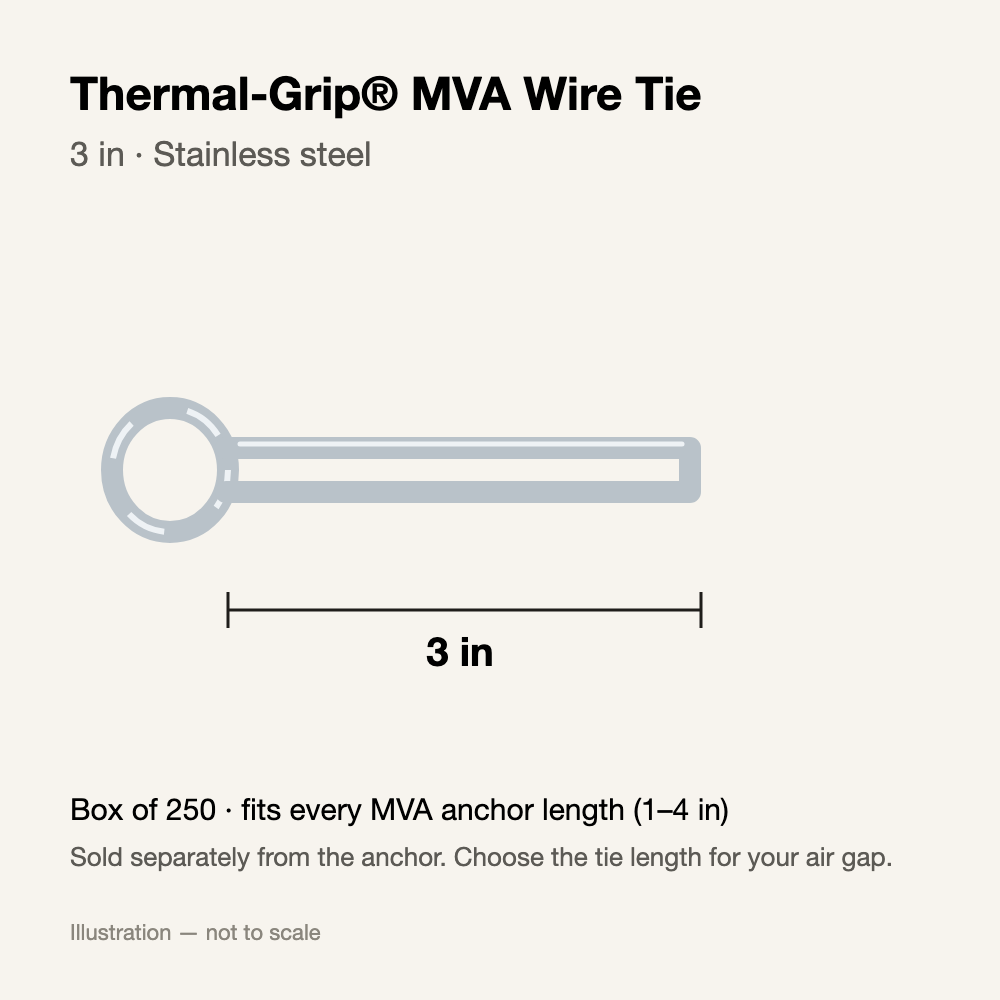

- 3 in wire tie, stainless steel

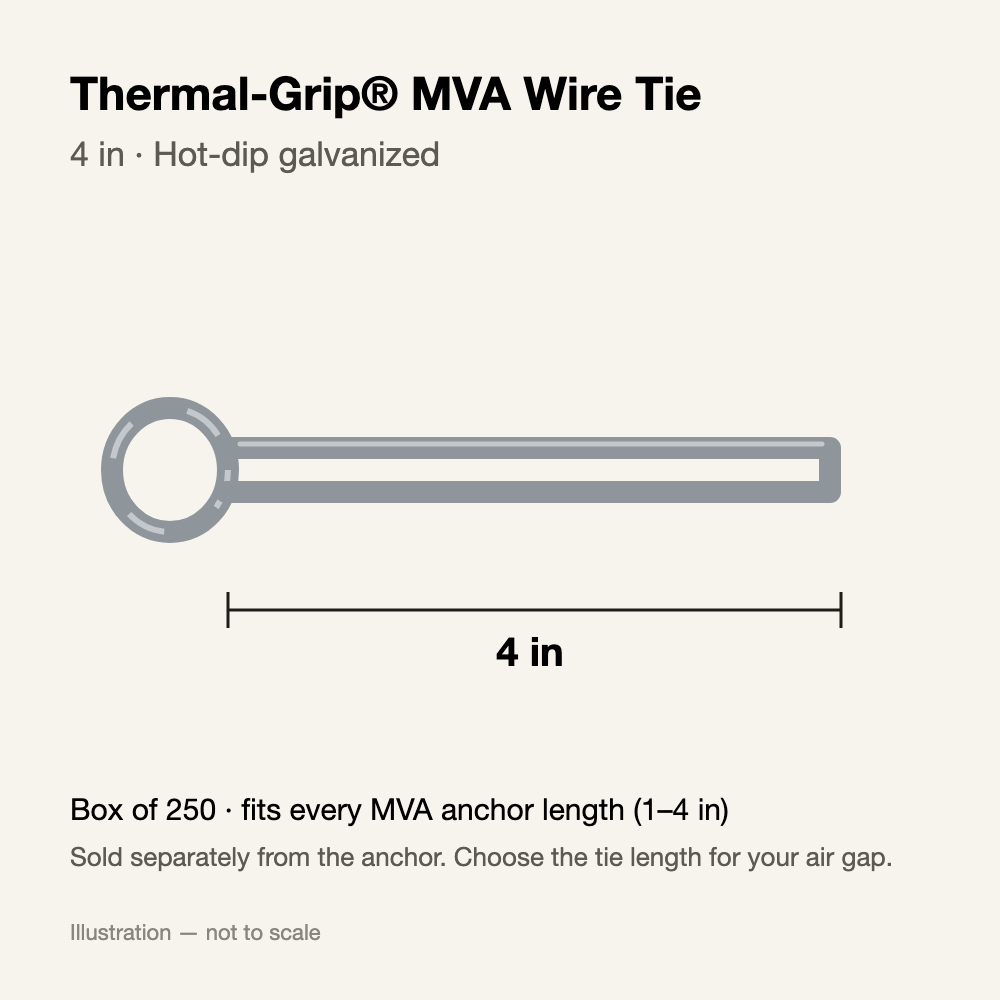

- 4 in wire tie, hot-dip galvanized

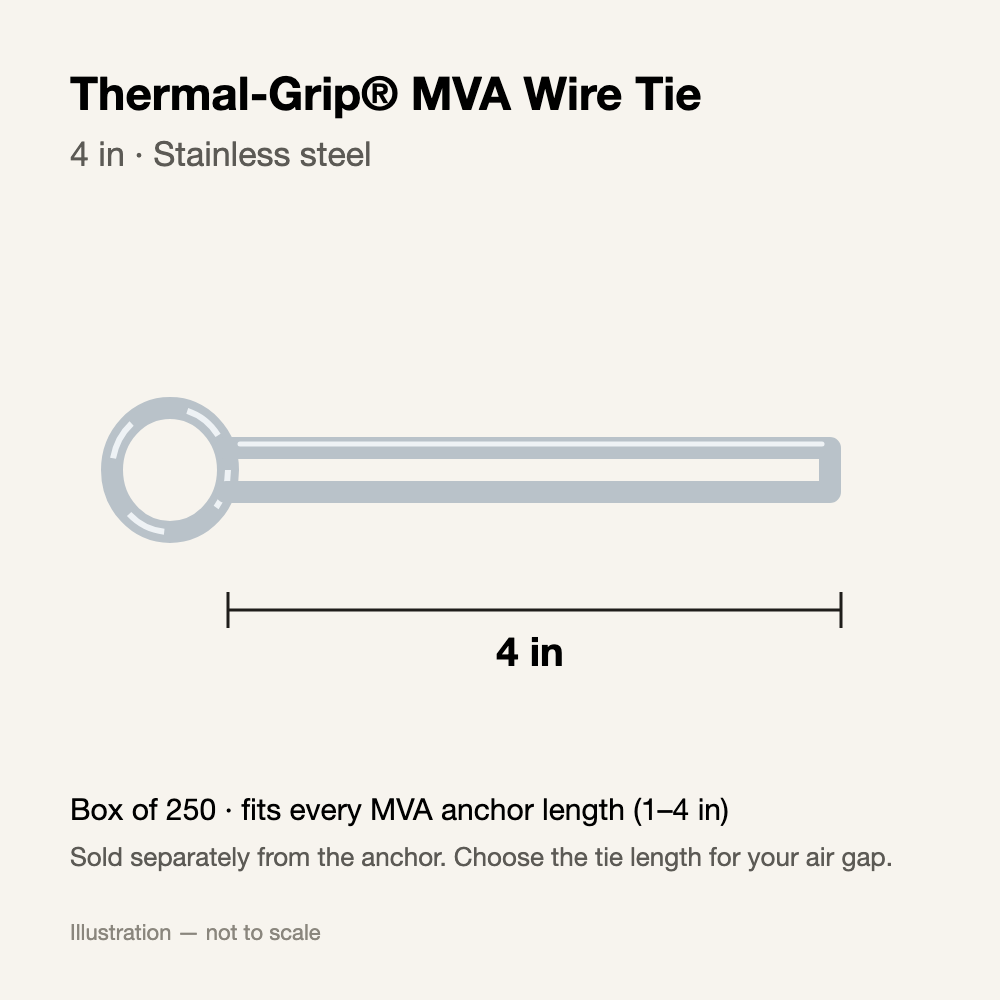

- 4 in wire tie, stainless steel

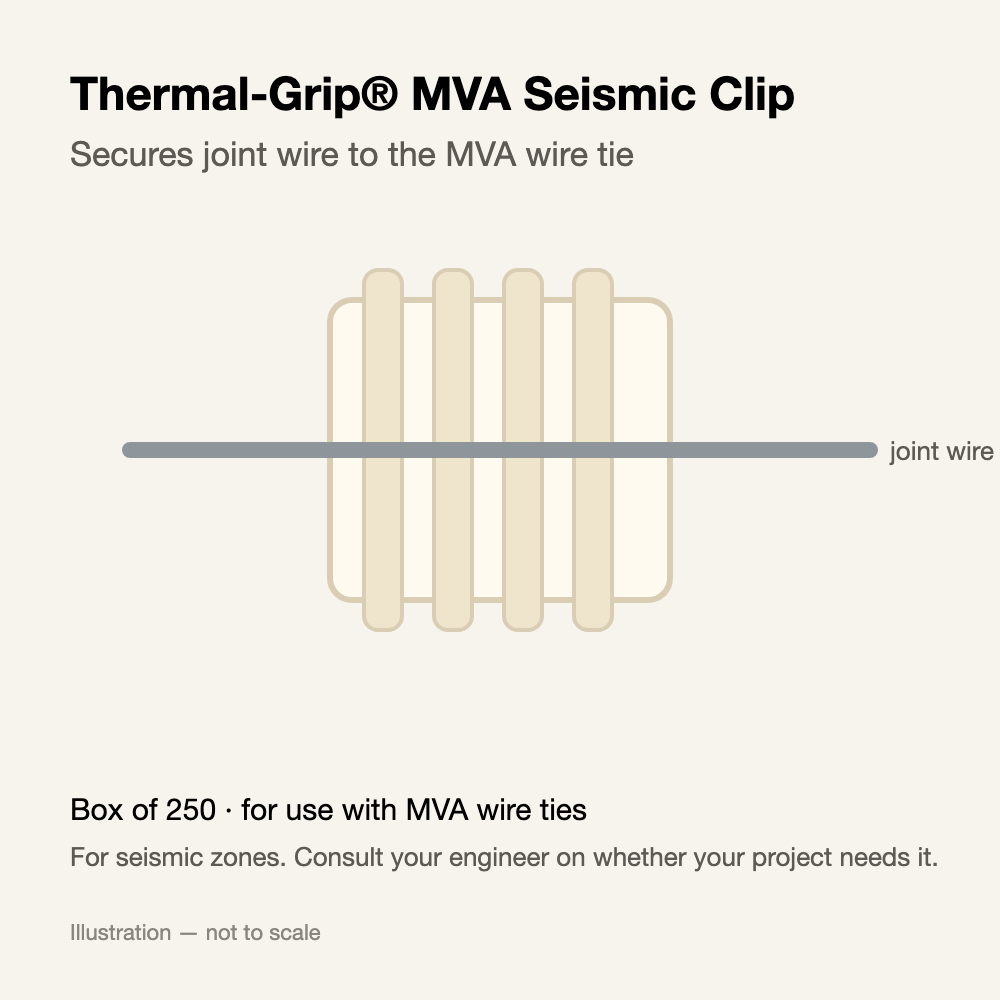

- Seismic clip for seismic zones (ask your engineer)
When to use it
- Brick or masonry veneer over steel- or wood-stud framing with continuous insulation
- Multi-story commercial walls with rainscreen cladding
- Retrofits adding ci behind a brick veneer
When fastening into concrete or CMU, pre-drill with a 3/16 in masonry bit.
Key Specifications
| Property | Specification |
|---|---|
| Legacy Tie Length (unused) | 4, 3 |
| Anchor Length | 1, 1.5, 2, 2.5, 3, 3.5, 4 |
| Legacy Anchor Length (unused) | 1, 1.5, 2, 2.5, 3, 3.5, 4 |
| Anchors per Pack | 250 |
