COMPACFOAM
High-density EPS structural thermal break — load-bearing rigid foam that stops thermal bridging at door thresholds, window bucks, and curtain-wall transitions.
$125.00
Lead Time: 2-3 weeks
Shipping: Quoted after checkout
What it does

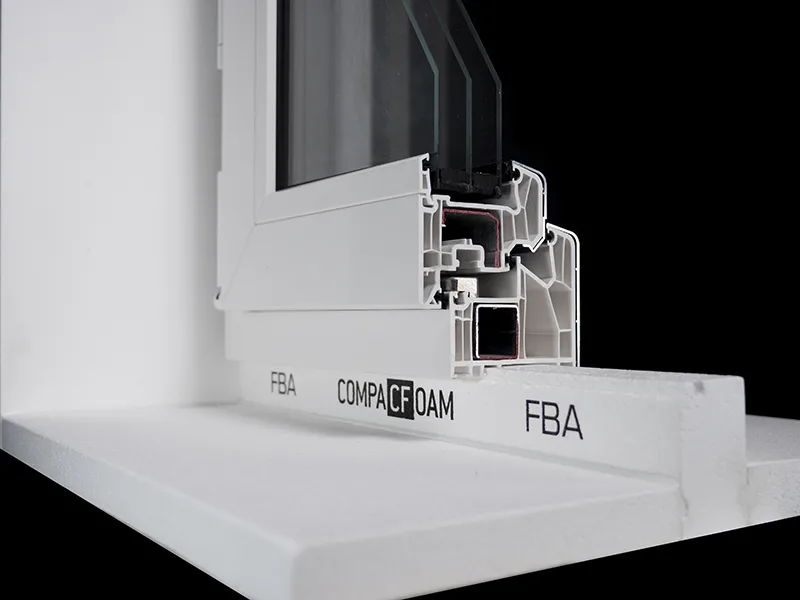

COMPACFOAM is a structural thermal-break material made from high-density expanded polystyrene (EPS), available in three density classes (CF100, CF200, CF400). It combines high compressive strength with excellent thermal insulation and very low density — letting it carry structural loads while interrupting thermal bridges.
When to use it
- Window and door rough openings (load-bearing buck around frames)
- Door thresholds and sill plates
- Curtain-wall and storefront transitions
- Steel-stud wall thermal breaks
Key benefits
- Conducts heat ~5,000× less than aluminum, ~1,300× less than steel, ~20× less than concrete
- High compressive strength supports structural loads
- Easy to drill and saw — no special tools
- Good screw pull-out resistance
- Mono-material EPS, simple to detail
Format
Rigid blocks/boards in densities 100–400 kg/m³, machinable on site.
Unit
| Length | 7.54 ft |
| Width | 45.5 in |
Key Specifications
| Property | Specification |
|---|---|
| Compressive Strength | 25 psi, 58 psi, 110 psi, 290 psi, 580 psi, 870 psi |
| Density | CFEco (70 kg/m³), CF100 (100 kg/m³), CF150 (150 kg/m³), CF200 (200 kg/m³), CF300 (300 kg/m³), CF400 (400 kg/m³) |
| Density Grade | CF 400 - 2.2 (R-2.2/in), 2.2, CF 300 - 2.71 (R-2.71/in), 2.71, CF 200 - 3.14 (R-3.14/in), 3.14, CF 150 - 3.2 (R-3.2/in), 3.2, CF 100 - 3.41 (R-3.41/in), 3.41, CF ECO - 3.73 (R-3.73/in), 3.73, 4.4 |
| R-Value | R-12.56, R-3.2, R-3.73, R-3.41, R-3.14, R-2.71, R-2.2, R-4.4, R-5.42, R-6.28, R-6.4, R-6.82, R-7.46 |
