Partel Internal Systems – Window and Door

Partel Alma Vert 180 is a modular product for reducing thermal bridges, and offers design flexibility for any type of low-energy project.

• Reduces conductive heat loss due to thermal bridging
• Benefits:
  • • Up to 100% PET recycled material
    • High compressive strength
    • Breathable
•  Uses:
  • • Internal and external
    • Thermal separation
    • Thermal bridge-free installation of windows and doors
• Available in:
  • • 1218mm x 1005 x 50mm (48" x 40" x 2")
    • 1218mm x 1005 x 75mm (48" x 40" x 3")
    • 180 kg/m³ (11.2 lb/ft³) density
    • 115 kg/m³ (7.2 lbs/ft³) density

Partel Paint-on airtight, smart vapor control layer Partel VARA FLUID - BRUSH is a breathable liquid membrane engineered to provide superior airtightness for long-term performance of the building envelope. It is a water-based air & vapor control layer (AVCL) that can be brushed, providing a continuous airtightness over cracks and gaps in both new build and retrofit projects.

• Brush application
• Internal and external use
• Wall to floor
• Wall to ceiling
• Window & door jambs
• Pipe and ducting penetrations
• General construction joints

Partel Flexible, airtight, smart vapor control layer Partel VARA FLUID - SPRAY is a breathable liquid membrane engineered to provide superior airtightness for the long-term performance of the building envelope. It is a water-based air & vapor control layer (AVCL) that can be sprayed or pressure rolled, ensuring protection and continuous airtightness in both new build and retrofit projects.

• Spray application
• Internal and external use
• Wall to floor
• Wall to ceiling
• Wall to timber
• General construction joints

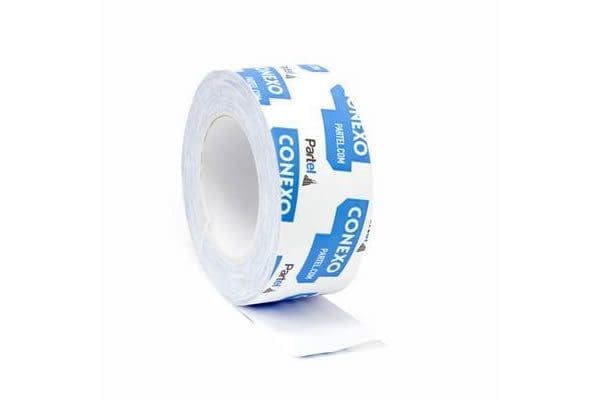

Partel Airtight and Windtight Sealing Tape

• Internal and external use
• Overlaps, Windows, Doors, Corners
• High shear strength
• Resistant to weathering, UV stability
• Water resistant adhesive
• 60mm X 25m (2-3/8' X 82')

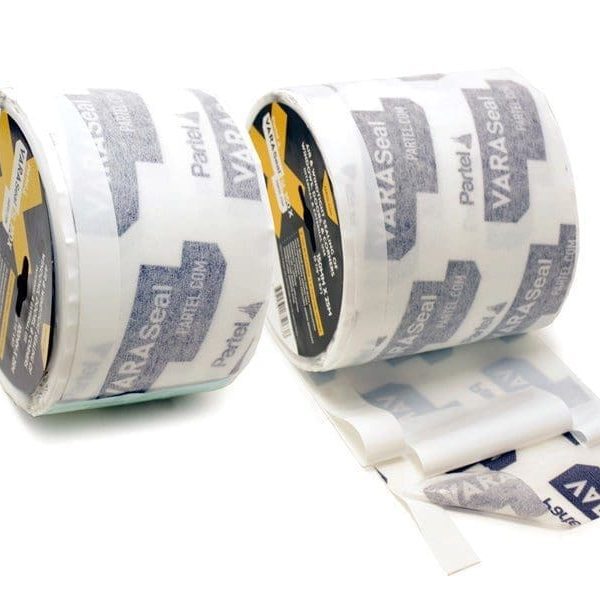

Partel Airtight and Windtight Sealing Tape

• Internal and external use
• Overlaps, Windows, Doors, Corners
• DOUBLE SIDED ADHESIVE ZONE
• High shear strength
• Resistant to weathering, UV stability
• Water resistant adhesive
• Easy to use finger-lift split rear liners can be removed separately to facilitate easy installation
• 100mm x 25m (3-7/8” x 82'); 150mm X 25m (5 7/8” X 82')

Partel

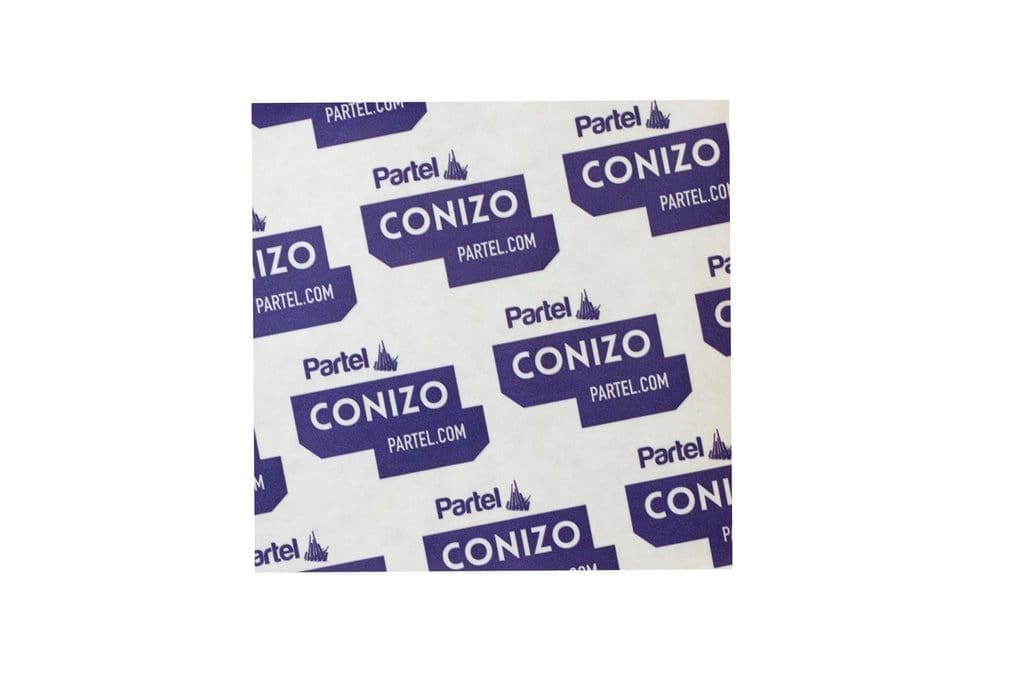

Partel Airtight Seal for Injection Holes

• Airtight seal for injection holes
• High-performance airtight tape
• Water-repelling carrier
• Acrylic adhesive with excellent aging resistance
• Extremely stable
• Design life = lifetime
• 160mm x 160mm (6-5/16” x 6-5/16”)
• Internal use
• Wall
• Price per box (2 rolls x 125 patches)

Partel Joint Sealing Tape - Seals Interior AND Exterior of Window Joint The CONPRESEAL 3V BG1 can be used to seal the window connection joint. The sealing of different joint widths and window profile thicknesses is possible due to the various tape widths and thicknesses. Depending on the degree of compression, one product can be used for several applications. Triple-Layer pre-compressed and impregnated multifunctional joint sealing tape for the sealing of all function areas in window joint sealing with a single product. Passive House Compliant & Moisture Variable

• Ideal for easy and reliable sealing of windows and doors for wood construction, prefabricated construction masonry, framework construction and concrete construction
• After the installation, the polyurethane soft foam expands in the joint and provides a durable joint sealing and an optimal vapor management
• 64mm x 14.1m / Joint width 6-15mm (2-1/2' x 46' 3/8" / Joint ¼“-5/8“)

Partel Joint Sealing Tape - for Exterior Joint Sealing Only Pre-compressed and impregnated multifunctional joint sealing tape for the sealing of all exterior areas in the window joint with a single product.

Partel Flexible Butyl Tape with High Tack

• High performance airtight tape
• Moisture-repellent / water resistant
• High adhesion and shear strength
• Lifetime flexibility adapts to most surfaces and angles
• Environmentally friendly - free of solvents and emulsifiers
• Outdoor exposure up to 3 months
• Airtight connections to DIN 4108-11

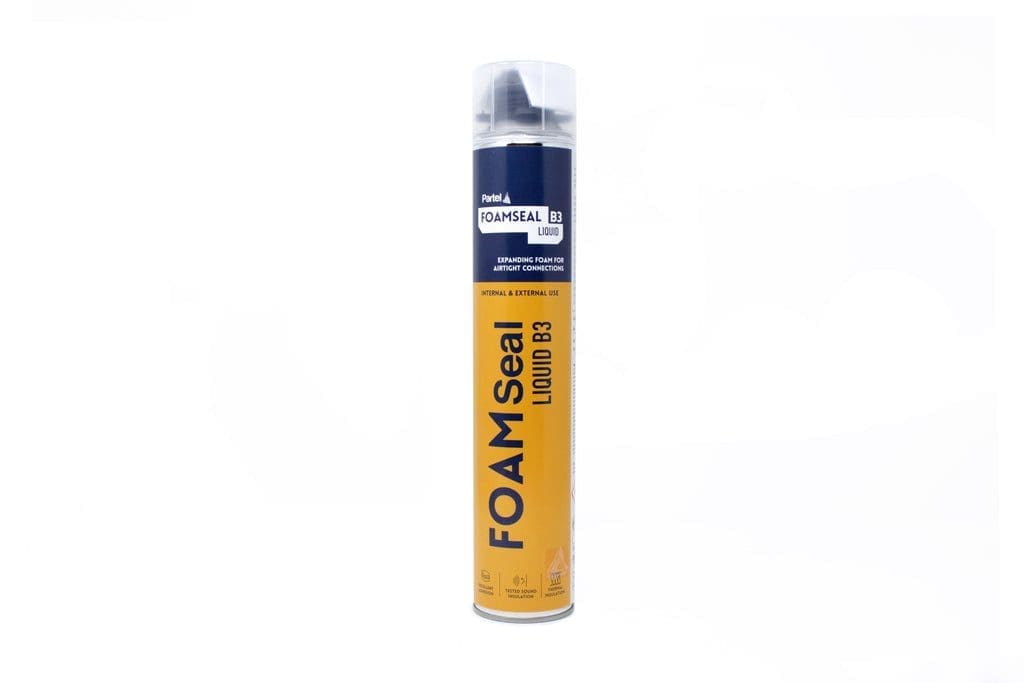

Partel Moisture-Curing Airtight Foam Sealant

• Partel FOAMSEAL Liquid B3 is a moisture-curing 1-component polyurethane foam sealant used for airtight connections, and thermal insulation, suitable for processing with a PU foam gun. Free from CFC, HCFC and HFC.
• Suitable for windows, attic conversion, doors, walls, corner joints, air conditioning and ventilation systems, pipelines, wooden structures.
• Designed to fill and seal around gaps, cracks and penetrations in the building envelope to stop air infiltration.
• Versatile to be used on various substrates like masonry, plaster, wood, concrete, aerated concrete, bricks, clinker, plasterboards, fiberboards, various plastics, corrosion protected metals, styrofoam, various other insulating materials, rigid foam panels, ceramics, tiles, stone.
