Home Passive House Air Sealing Systems Roof Flashing Systems WickRight Kit 2A – Parapet Vented Drip Edge/Receiver Clip Kit for Capstones on 8″ Wide Masonry Walls
WickRight Kit 1A – Parapet Vented Drip Edge Kit for Capstones on 8″ wide Masonry Walls From $226.00
Back to products
W. R. Meadows Perminator Underslab Vapor Barrier 10 & 15 Mil $534.95 – $558.65

WickRight Kit 2A – Parapet Vented Drip Edge/Receiver Clip Kit for Capstones on 8″ Wide Masonry Walls

From $368.75

WickRight



WickRight Passive Ventilation Systems„¢ help keep masonry parapet walls dry.
Our KITS save you time by bundling all the WickRight materials you need: ***For 9″ walls please order Kit #2B HERE

WickRight Capstone Vented Drip Edge and Receiver Clip Kit #2A includes:

  • WickRight Capstone Vented Drip Edge„¢ – 1 included
  • WickRight Capstone Vented Receiver Clip„¢ – 1 included
  • WickRight Vapor Permeable Membrane„¢ – 1 included
  • WickRight Standard Counter Flashing – 1 included
  • WickRight Bug Screen – 3 included

WickRight Vapor Permeable Membrane

$100.00
WickRight

WickRight Vapor Permeable Membrane protects masonry parapet walls from moisture intrusion, yet allows walls to exhaust moisture vapor to stay dry! Our membrane has a vapor permeability rating of 108, yet withstands 19.1 psi direct water pressure and will hold 8 oz water up to 9.5 hours with only 0.04 grams of leakage.

Membrane comes in 200' rolls in 3 widths - 9", 15" and 20"
Custom widths are available, call 312-720-1467 to discuss.

Clear

WickRight Capstone Vented Drip Edge

$63.00
WickRight   Patented WickRight Capstone Vented Drip Edge helps keep masonry parapet walls dry! Install under Capstones to prevent moisture intrusion from above and allow moisture to exhaust from the wall. WickRight Passive Ventilation increases airflow across and into the parapet by 7.2 cfm per linear foot with an 18 mph wind, producing a lift force of 7.87 lb to draw moisture vapor up and out of masonry walls. WickRight Passive Ventilation is field proven in over 100 buildings in Chicago, Milwaukee, Tampa, Central Ohio and Northern California. WickRight Capstone Vented Drip Edge can be installed on both sides of parapet wall or  installed on the exterior side of the parapet, paired with Capstone Vented Receiver Clip on the interior side. Sold in 10 foot lengths Stainless steel in stock Custom order Copper or Kynar painted galvanized steel,  call 312-720-1467 for details. 20 year limited manufacturer warranty available when installed by WickRight authorized installer.

WickRight Capstone Vented Receiver Clip

$126.00
WickRight   Patented WickRight Capstone Vented Receiver Clip helps keep parapet walls dry! Install under capstones. Also serves as a receiver clip for counter flashing on the interior side of the parapet to protect the roof termination. Install with Capstone Vented Drip edge on the exterior side of the parapet. Installing WickRight Passive Ventilation increases airflow across top of the parapet 7.2 cfm per linear foot with an 18 mph wind, producing a lift force that draws moisture vapor out of walls.  WickRight is field proven in over 100 buildings. Sold in 10 foot lengths 20 year limited manufacturer warranty available when installed by WickRight authorized installers

3 x WickRight Vented Bug Screen

$12.00
WickRight   WickRight Vented Bug Screen discourages insect nesting. Required with installation of Low-Slope Roof Vent behind our Standard Counter Flashing, Offset Counter Flashing and Double Caulk Pocket Counter Flashing Place bug screen behind counter flashing and secure with fastener. Sold in 4 foot lengths

WickRight Standard Metal Counter Flashing

$43.75
WickRight   Install WickRight Standard Counter Flashing for added protection to parapet walls beneath WickRight Capstone Vented Receiver Clip. Stainless Steel in stock. Can be fabricated in Kynar painted galvanized steel or aluminum, call for details.

Available in 10 ft lengths, 4" deep Order needed length plus 10%
Add to Spec List
Compare
Categories: Passive House Air Sealing Systems, Passive House Wall Assembly, Rain Screens, Roof Flashing Systems, Waterproof Flashing
  • Description
  • Files and Downloads
  • Additional information
  • Vendor Info
  • More Products
Description

WickRight Passive Ventilation„¢ Systems help keep masonry parapet walls dry.
Our KITS save you time by bundling all the WickRight materials you need.

This Kit covers 10ft.

WickRight Kit 2A – Parapet Vented Drip Edge/Receiver Clip Kit is a high performance building supply.

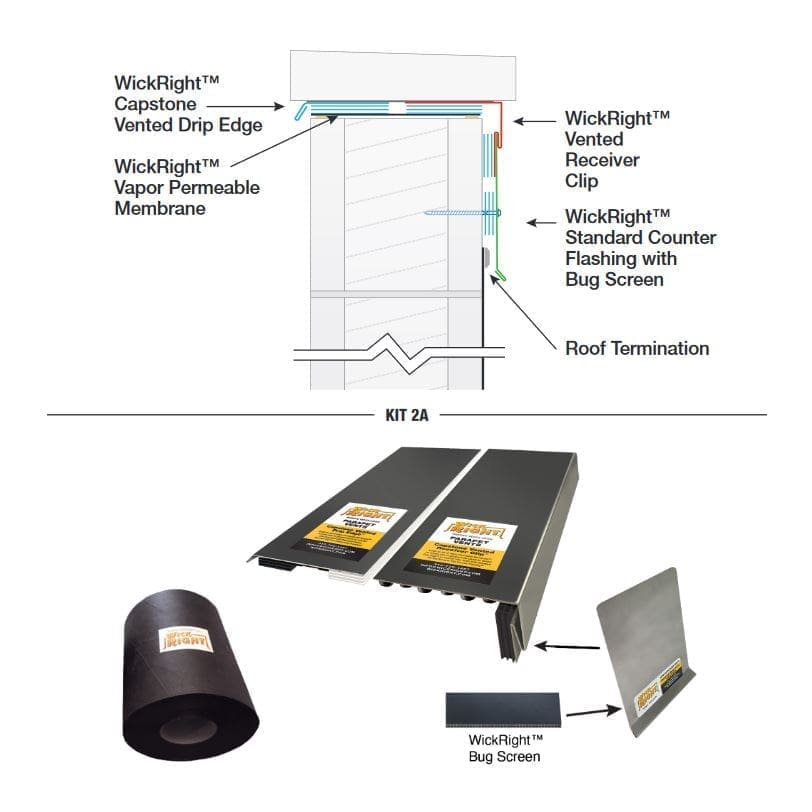

WickRight Capstone Vented Drip Edge„¢ and Vented Receiver Clip„¢ Kit #2A includes:

  • WickRight Capstone Vented Drip Edge„¢ (1 included) for exterior side of parapet wall
    Sold in 10 foot lengths
    Standard Drip Edge is Stainless steel
    Copper and Kynar painted galvanized steel available, call for details
  • WickRight Capstone Vented Receiver Clip„¢ (1 included) for interior side of parapet wall
    Sold in 10 foot lengths
    Standard Receiver Clip is Stainless steel
    Copper and Kynar painted galvanized steel available, call for details
  • WickRight Vapor Permeable Membrane„¢ (1 included) – based on width of parapet wall – protects parapet from wind driven rain, allows moisture vapor to exit, does not allow water to enter
    Rolls are 200′ long, short rolls may be available
    Standard widths in stock €“ 9″, 15″ or 20″
    Custom widths available, call for details
  • WickRight Standard Counter Flashing (1 included)
    Sold in 10 foot lengths
    Standard Drip Edge is Stainless steel
    Copper and Kynar painted galvanized steel available, call for details
  • WickRight Bug Screen (3 included)
    Sold in 4 foot lengths
    Keeps out insects

Passive Ventilation Stats:
Increases airflow across and into parapet by 7.2 cpm per lineal foot with an 18 mph wind, producing a lift force of 7.87 lbf to draw moisture vapor up and out of masonry walls.

WickRight Passive Ventilation is field proven in over 100 buildings in Chicago, Milwaukee, Tampa, Central Ohio and Northern California.

Warranty Information:
20 year limited manufacturer warranty available when installed by WickRight authorized installer.

Durability:
Crush tested up to 300 lbs per square inch – no worries about installing under heavy capstones.
If you have a project with capstones exceeding 300 lbs per stone, call to discuss custom fabrication options.

How to Order:
Measure length of parapet wall, add 10% for corners, etc

Example – wall is 125′ x 110% = 137.5′
Order 140′ – because Drip Edge and Receiver Clip come in 10 foot lengths
Kit 2 will come with equal lengths of Drip Edge and Receiver Clip

Lead time/Shipping:
Capstone Vented Drip Edge and Vented Receiver Clip Kit 2 is typically in stock, however, should fabrication be needed, it takes 7-10 business days. Shipping is typically via FedEx LTL Freight, 5-10 business days.

Shipping and Handling for 100 feet costs $300-350.00 depending on destination. We will provide a shipping quote upon receipt of order.

Just In Time Delivery available in Chicagoland for $100.

Files and Downloads

WickRight Capstone Vented Drip Edge

(3 MB)

WickRight Capstone Vented Receiver Clip

(3 MB)

WickRight Vapor Permeable Membrane

(3 MB)

WickRight Capstone Vented Drip Edge Receiver Clip

(3 MB)
