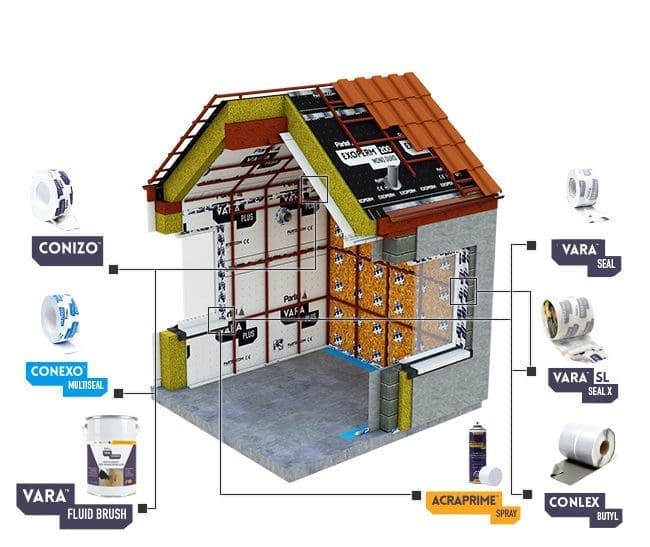

Partel Internal Systems – Corner

Partel Paint-on airtight, smart vapor control layer Partel VARA FLUID - BRUSH is a breathable liquid membrane engineered to provide superior airtightness for long-term performance of the building envelope. It is a water-based air & vapor control layer (AVCL) that can be brushed, providing a continuous airtightness over cracks and gaps in both new build and retrofit projects.

• Brush application
• Internal and external use
• Wall to floor
• Wall to ceiling
• Window & door jambs
• Pipe and ducting penetrations
• General construction joints

Partel Smart Vapor Control Membrane

• Best SD value range (Humidity variable vapor SD-values from 0.4 m to >60 m) ensures optimum summer drying conditions and winter protection
• Optimal airtightness and water vapor transmission rate in different climate conditions
• Elastic and durable
• Reinforced for optimal strength
• Durable towards UV aging
• Optimal protection against humidity ensures drying of the building structure
• Extremely safe system
• Easy and quick to install
• Energy-efficient
• Increased durability of buildings
• Reduced heating/cooling costs
• 1.5m X 50m=75m2 (59-1/16” X 164'-1/2” = 807 SF)

Partel Airtight and Windtight Sealing Tape

• Internal and external use
• Overlaps, Windows, Doors, Corners
• DOUBLE SIDED ADHESIVE ZONE
• High shear strength
• Resistant to weathering, UV stability
• Water resistant adhesive
• Easy to use finger-lift split rear liners can be removed separately to facilitate easy installation
• 100mm x 25m (3-7/8” x 82'); 150mm X 25m (5 7/8” X 82')

Partel

Partel Airtight Seal for Injection Holes

• Airtight seal for injection holes
• High-performance airtight tape
• Water-repelling carrier
• Acrylic adhesive with excellent aging resistance
• Extremely stable
• Design life = lifetime
• 160mm x 160mm (6-5/16” x 6-5/16”)
• Internal use
• Wall
• Price per box (2 rolls x 125 patches)

Partel Flexible Butyl Tape with High Tack

• High performance airtight tape
• Moisture-repellent / water resistant
• High adhesion and shear strength
• Lifetime flexibility adapts to most surfaces and angles
• Environmentally friendly - free of solvents and emulsifiers
• Outdoor exposure up to 3 months
• Airtight connections to DIN 4108-11
