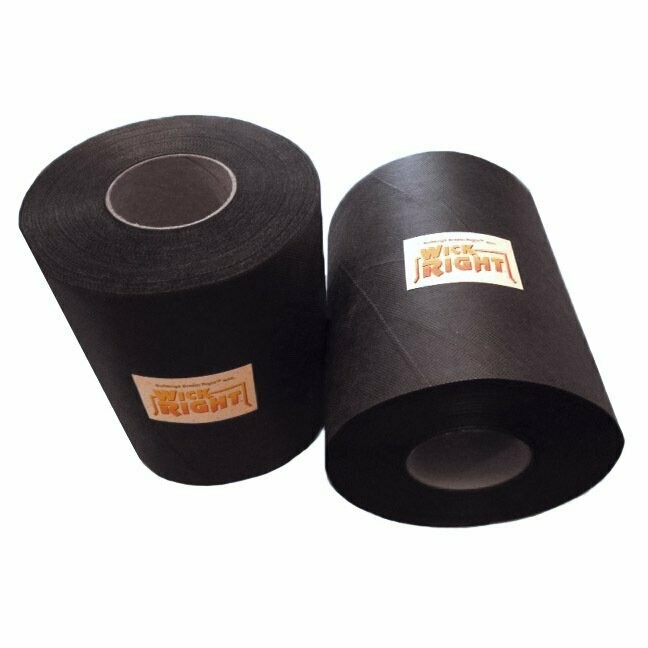

WickRight Vapor Permeable Membrane

$100.00 – $150.00

WickRight



WickRight Vapor Permeable Membrane protects masonry parapet walls from moisture intrusion, yet allows walls to exhaust moisture vapor to stay dry! Our membrane has a vapor permeability rating of 108, yet withstands 19.1 psi direct water pressure and will hold 8 oz water up to 9.5 hours with only 0.04 grams of leakage.

Membrane comes in 200′ rolls in 3 widths – 9″, 15″ and 20″
Custom widths are available, call 312-720-1467 to discuss.

Clear
Add to Spec List
Compare
SKU: WVPM Categories: Passive House Air Sealing Systems, Passive House Wall Assembly, Rain Screens, Waterproofing Membranes
  • Description
  • Files and Downloads
  • Additional information
  • Vendor Info
  • More Products
Description

WickRight Vapor Permeable Membrane protects masonry parapet walls from moisture intrusion, yet allows walls to exhaust moisture vapor to stay dry!

ASTM & NFA Stats

WickRight Membrane – Breatheable, yet virtually waterproof!

  • ASTM-E96 – 108 vapor permeability rating –
    Water vapor rises through membrane
  • High-performance building material
  • Holds 8 oz of standing water up to 9.5 hours with only .040 grams of seepage –
    Water molecules are too big to pass through membrane
  • Membrane withstands 19.1 psi vertical application of water for 20 minutes
    Please note: Membrane is installed horizontally within the wall assembly – so, after installation, no direct application of water is possible

Required for installation with:
WickRight Capstone Vented Drip Edge
Capstone Vent with Receiver Clip
Clay Coping Vent

Optional for installation with:
Metal Coping Vent under metal copings

How to Order:
Perimeter measurement plus 10%

Rolls are 200 feet long

9″ rolls works best on single-wythe block walls
15″ rolls works best on brick/block wall combinations and multiple-wythe brick buildings
20″ rolls used on buildings that have custom widths, twists, turns and odd angles to accommodate

If your project requires wider membrane, please call 312-720-1467. 10 days advance notice required.

Lead time/Shipping:
WickRight Vapor Permeable Membrane is typically in stock. Shipping is typically via FedEx Ground, 3-5 business days.

Shipping and Handling for 1 roll costs $25-35.00 depending on destination. We will provide a shipping quote upon receipt of order.

Just In Time Delivery available in Chicagoland free with other WickRight Passive Ventilation products.

Files and Downloads

WickRight Vapor Permeable Membrane

(3 MB)

Product Data

(1 MB)
Additional information
Weight 10.4 lbs
Size

9" Roll/200' length, 15" Roll/200' length, 20" Roll/200' length

Air Tightness

Permeable

Application Type

Mechanically-Fastened

Flammable

No

Substrate Adhesion

Brick, Concrete

Vapor Permeability

Class 3 – Semi-Permeable, Class 4 – Permeable

Weather Tight

Yes

Interior Exterior

Exterior

Brand

WickRight
