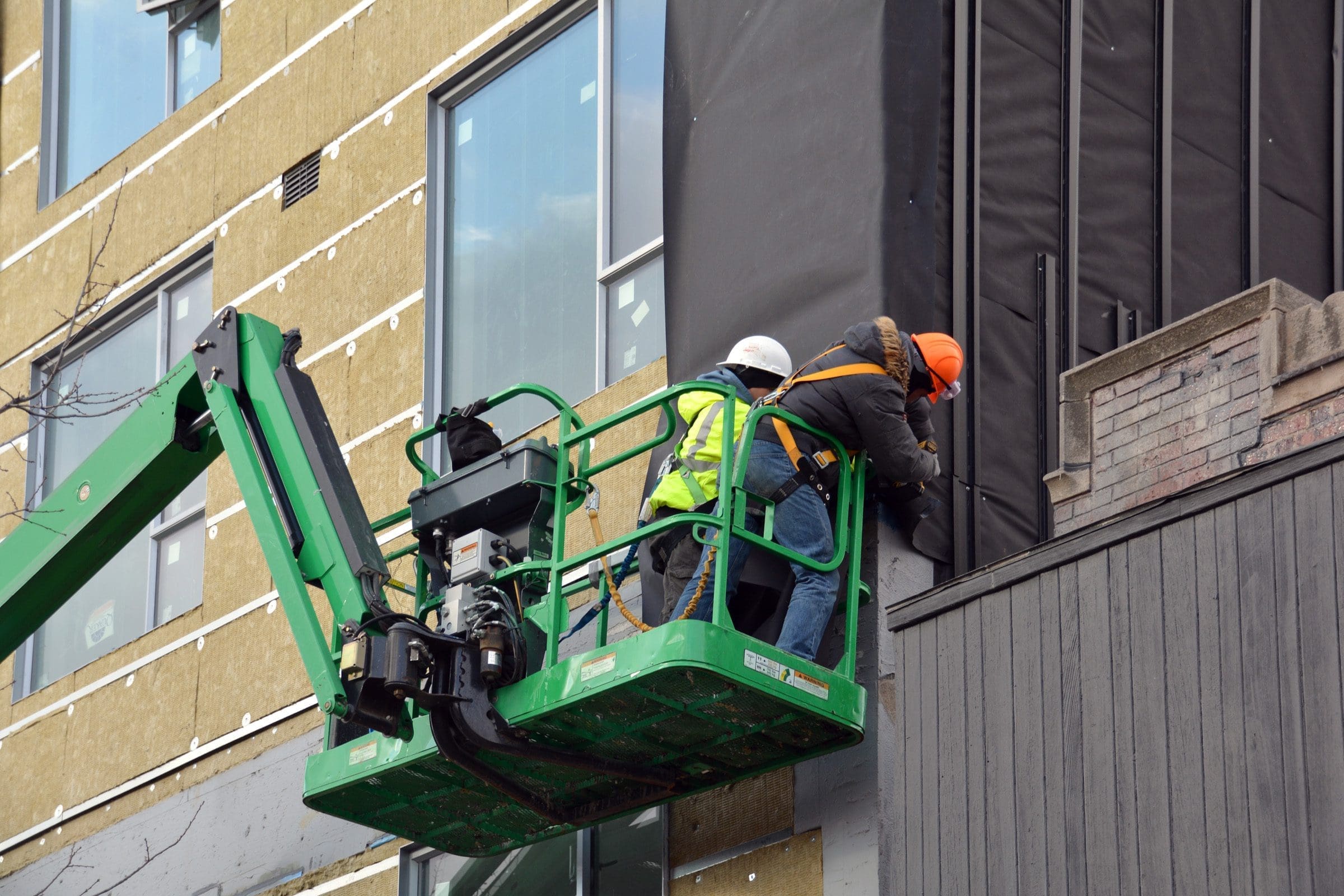

Delta fassade s install
Home Air Sealing Systems Waterproofing Membranes DELTA®-FASSADE S
DELTA®-VENT SA $586.0140lb
Back to products
DELTA®-FASSADE TAPE $321.3010 Rolls

DELTA®-FASSADE S

$723.0744lb

General Insulation Inc.

Delta Dorken

DELTA®-FASSADE S is a high-performance, UV- and water-resistive barrier that is designed to be installed in front of continuous insulation.

  • Ideal for use in metal and wood stud construction
  • Integrates well with most open-joint cladding systems, e.g. Trespa, Swisspearl, Eternit, Fundermax
  • Approved under International Building Code and International Residential Code (ICC ESR-2932)

EST DELIVERY – 3 WEEKS

Available on backorder

Add to Spec List
Compare
SKU: 70590 Categories: Air Sealing Systems, Waterproofing Membranes Tags: delta, delta dorken, dorken
  • Description
  • Files and Downloads
  • Additional information
  • More Products
Description

DELTA®-FASSADE S is the water-resistive barrier that is ideal for open cladding. The watertight membrane is highly vapor permeable and extremely tear resistant. Highly stabilized against damage from UV exposure, the barrier is designed for use in cladding systems that have open joints up to 2” (50 mm) wide, which expose up to 40% of the entire façade surface.

DELTA®-FASSADE S is the only UV-stable, water-resistive barrier that is tested under and has passed ICC-AC38. Passive House High-performance building material.

  • UV-stabilized polyester substrate
  • Durable drainage plane, channels bulk liquid from wind-driven rain and snow to the outside of the structure
  • High vapor permeability, allows moisture within the cavity to escape swiftly via diffusion
  • Watertight; protects the building enclosure from the possible damage of moisture infiltration
  • Lightweight and tear resistant, making installation fast, easy and reliable
  • Heavy duty, withstands the rigors of jobsites, as well as tough wind and weather
  • Matte black; prevents blinding during installation and acts as a blank canvas, allowing the open cladding architecture to shine
  • Highly tear-resistant polyester substrate with a special, highly UV-stabilized acrylic coating
  • Class A fire rated

EST DELIVERY – 3 WEEKS

Files and Downloads

Product Brochure

(3 MB)

Safety Data Sheet

(258 KB)

Technical Data

(349 KB)
Additional information
Application Type

Mechanically-Fastened

Vapor Permeability

Class 4 – Permeable

Flame Spread

≤25

Smoke Index

<450

UV Resistance

Yes

Air Tightness

Permeable

Coverage Area

9,676 sq ft.

Length

164'

Width

4'11"

Brand
