Triotherm+ Profiles

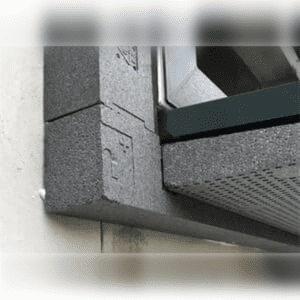

Blaugelb Triotherm+ profiles made from a high-density EPS (expanded polystyrene) are one of the three system components of the blaugelb Triotherm+ system. The robust, hard-wearing profiles exhibit load-bearing capacity, can be fitted to the load-bearing structure quickly and easily, and offer thermally isolated load transfer. The thermal bridges from the structurally necessary fastening of construction elements are reduced to a minimum. The Blaugelb Triotherm+ profiles can be integrated perfectly into the insulating zones of all facade systems.
The waste-free joining of the Blaugelb Triotherm+ profiles brings clear advantages for the fitter by virtue of the extruded, positive-locking dovetail design. Thanks to their low weight and compact dimensions, the Blaugelb Triotherm+ profiles are unbeatably quick and straightforward to process. Expert sealing and mechanical fastening of the Blaugelb Triotherm+ profiles to the load-bearing base is necessary, but takes only a few minutes.
For more detailed information on installation, please consult the installation instructions at www.blaugelb.de
Product benefits:
- Stable dimensions and volume
- Insensitive to moisture, non-ageing
- 100% recyclable, 100% free of HCFCs and HFCs
- HBCD (hexabromocyclododecane)-free
- High-density (expanded) polystyrene
- High ductility
- Thanks to 100 % reversibility of window fastening for renovation, makes a major contribution to sustainable building
- Time savings thanks to few working steps and swift combination
- with the system components
- Profiles are easy to machine/saw with a jigsaw or mitre saw
- (coarse longitudinal-cut blade)
- Can be cut to shape precisely and with minimal dust

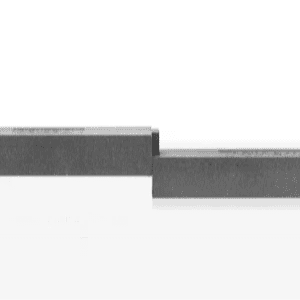

- Infinitely extensible by dovetailing
– Very good fit of the dovetail joint
– High level of joint stability
– Waste-free processing - Profiles exhibit a very low weight and compact dimensions
– Advantage for transporting to/on construction site
– Advantage for handling - Window frames can be screwed on without pre-drilling of the Blaugelb Triotherm profiles
- Waffle structure increases the adhesion of the seal between the base and the Blaugelb Triotherm profiles
- Production process constantly maintains very high dimensional accuracy and geometrical accuracy of the Blaugelb Triotherm profiles
– Always straight
– Always level sealing flanks - High inherent stability and flexural strength, high ductility
- Airtight, connection between profile and base is verified by technical tests
- Absorption of high building tolerances flush with windows is verified by technical tests
- Reduces thermal bridges in the mounting plane of the assembly parts
- Tested to be low in pollutants according to EMICODE EC1 Plus
- This product is Cradle to Cradle Certified® at the Silver level
- Passive House High-Performance building material
| Material: | High-density EPS (expanded polystyrene), high ductility |
| Colour: | Grey |
| Compressive load bearing capacity at max. total deformation of 2%: | 1,260kg/dm² |
| Compressive load bearing capacity at 60 x 40 mm: (blaugelb Spacer Block) |
5,800 N |
| Compressive load bearing capacity at 210 x 53 mm: (blaugelb Shim Block HST) |
15,510 N |
| Fire behaviour:
DIN 4102-1:1998-05 / DIN EN 13501-1:2019-05 |
B2 / Class E |
| Thermal conductivitynominal value?10: DINEN12667:2001-05 |
0.0375 W/m*K |
| Air permeability:
EN12207 |
Class 4 |
| Water vapour diffusion resistance:
DINENISO12086 |
228 µ |
| Bending strength:
DINEN12089 |
2,490kPa |
| Compression stress (2%) compression:
DIN EN DIN EN 13163:2017 / EN 826:2013-05 |
1,435kPa |
| Shear strength: DINENISO14130 |
0.217 N/mm² |
| Screw withdrawal value:
(Frame screw Fix FK-T30 7.5×62 mm) |
2,100 N |
| Water absorption after 28days under water: DIN12087 |
0.5vol.% |
| Compatibility with conventional building materials: | Compatible, except for solvents, solvent-bearing materials and materials that are not polystyrene-compatible |
| Ageing resistance: | Mould-proof, does not rot |
| Waste code: | Code no. 170604 Code no. 170904 |
