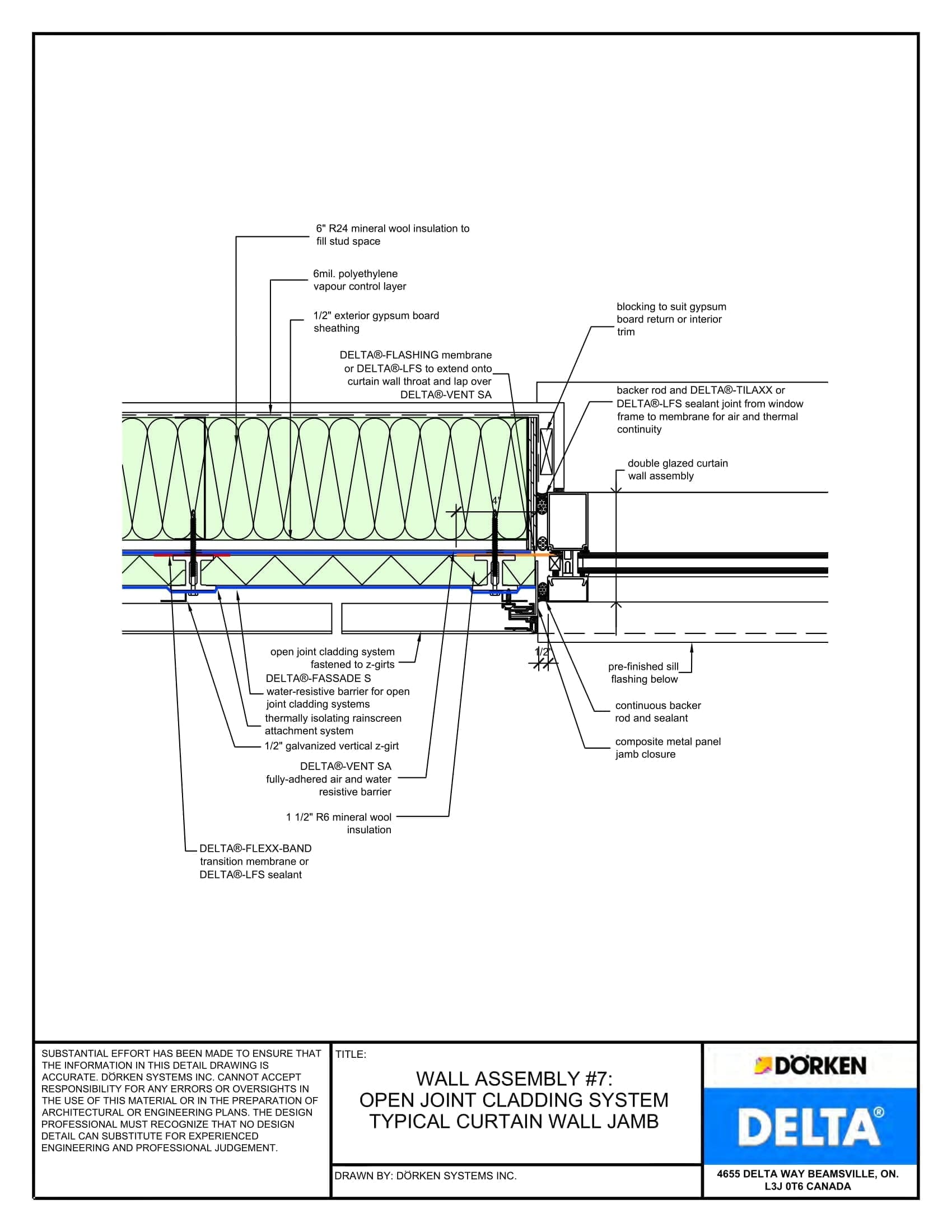

Delta® Fassade S Wall Assembly — Opened Joint Cladding, Steel Frame, Less Than 2″ Exterior Insulation – Curtain Wall Jamb

Delta Dorken

Delta Dorken DELTA®-FLEXX-BAND is a connecting and sealing tape for internal and external detail elements such as dormer windows, soil pipes, and cables. The product is composed of stretchable Butyl rubber adhesive on a special non-woven fabric, allowing for great adhesion and stretchability. Roll sizes: 32.8'

Delta Dorken DELTA®-LFS is a high-performance adhesive, sealant, and liquid flashing. It has been specifically designed for use with all DELTA® air- and water-resistive barriers. It is the product of choice for use around windows and doors as a liquid flashing in rough openings or as a sealant to make the air barrier continuous. It is used as air barrier adhesive in building and construction applications where a high-bond silicone sealant is required. DELTA®-LFS is black in color.

Delta Dorken DELTA®-FLASHING is a premium, durable, self-adhering flashing that helps make an enclosure system air and water tight. This product is composed of a special polypropylene carrier film along with a pressure-sensitive butyl-base adhesive with an easily removed polyethylene (PE) release liner. It adheres tenaciously to seal the interface between rough openings for windows and doors, common building substrates, and to all DELTA® air- and water-resistive barrier membranes. In addition, DELTA®-FLASHING is very puncture resistant with excellent self-sealing qualities that resist air and water ingress at vulnerable detail areas. It's non-bituminous, low odor, and suitable for LEED® rated projects by contributing to a more durable, sustainable, and energy-efficient structure. It is fully compliant with AAMA 711-07 Voluntary Specification for Self-Adhering Flashing Used for Installation of Exterior Wall Fenestration Products. Roll size: 75'

Delta Dorken DELTA®-FASSADE S is a high-performance, UV- and water-resistive barrier that is designed to be installed in front of continuous insulation.

• Ideal for use in metal and wood stud construction
• Integrates well with most open-joint cladding systems, e.g. Trespa, Swisspearl, Eternit, Fundermax
• Approved under International Building Code and International Residential Code (ICC ESR-2932)



Delta Dorken The vapor permeable, self-adhering air- and water-resistive barrier comes with BIM models, which allows you to quickly and easily design your building with confidence.
