Our Passive Ventilation Systems help keep masonry parapet walls dry.
Our KITS save you time by bundling all the WickRight materials you need.
This Kit covers 10ft.

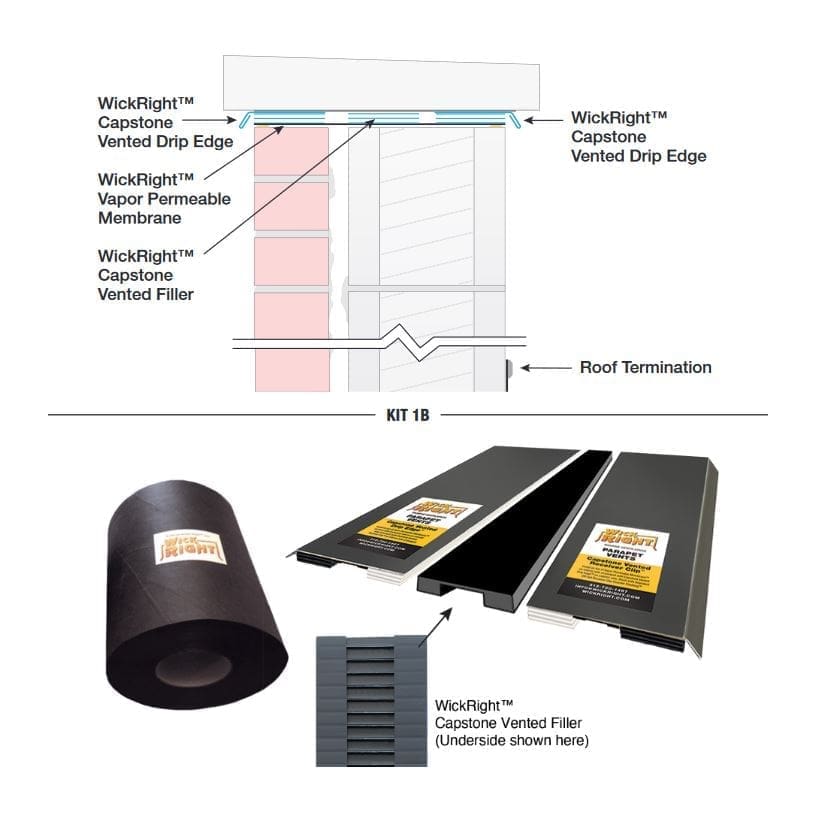

WickRight Capstone Vented Drip Edge™ Kit #1B includes:
- WickRight Capstone Vented Drip Edge™ (2 included) for both sides of parapet wall
Sold in 10 foot lengths
Standard Drip Edge is Stainless steel

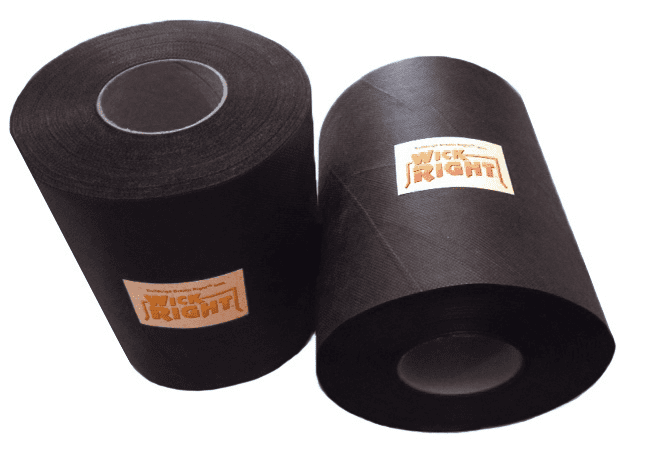

Copper and Kynar painted galvanized steel available, call for details - WickRight Vapor Permeable Membrane™ (1 included) – based on width of parapet wall – protects parapet from wind driven rain, allows moisture vapor to exit, does not allow water to enter
Rolls are 200′ long, short rolls may be available
Standard widths in stock — 15″ or 20″

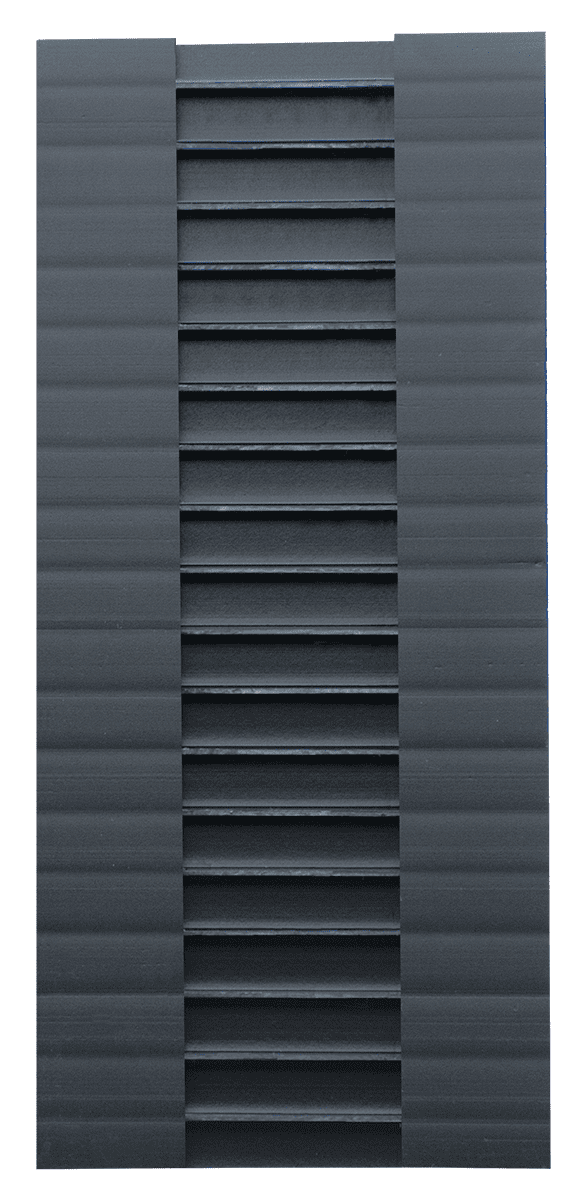

Custom widths available, call for details - WickRight Capstone Vented Support™ (3 included)
Vented Drip Edge is 4′ wide, choose width based on gap left between Drip Edge on interior and exterior sides of wall — prevents self-adhered flashing from sagging over time
Sold in 4 foot lengths
Standard widths in stock — 3″, 4″, 5″
Custom widths available, call for details
General wall info:
– Block Walls — 8″ wide — no support needed (order Kit #1A HERE)
– Brick/Block Walls — typically 12′ wide but vary widely — choose 3″ support — 12-8 = 4 — 3″ support fits easily between the 2 Drip Edge pieces
– Common Brick Walls — widths varies based on construction method, measure carefully
Passive Ventilation Stats:
Increases airflow across and into parapet by 7.2 cpm per lineal foot with an 18 mph wind, producing a lift force of 7.87 lbf to draw moisture vapor up and out of masonry walls.
WickRight Passive Ventilation is field proven in over 100 buildings in Chicago, Milwaukee, Tampa, Central Ohio and Northern California.
Warranty Information:
20 year limited manufacturer warranty available when installed by WickRight authorized installer.
Durability:
Crush tested up to 300 lbs per square inch – no worries about installing under heavy capstones.
If you have a project with capstones exceeding 300 lbs per stone, call to discuss custom fabrication options.
How to Order:
Measure length of parapet wall, add 10% for corners, etc
Example – wall is 125′ x 110% = 137.5′
Order 140′ – because Drip Edge comes in 10 foot lengths.
Kit 1 will include 280′ of Drip Edge, because you need one length for each side of the wall
Lead time/Shipping:
Capstone Vented Drip Edge Kit 1 is typically in stock, however, should fabrication be needed, it takes 7-10 business days. Shipping is typically via FedEx LTL Freight, 5-10 business days.
Shipping and Handling for 100 feet costs $200-250.00 depending on destination. We will provide a shipping quote upon receipt of order.
Just In Time Delivery available in Chicagoland for $100.
