- End Dams: Measure 4” H x 4” D x 4” W
- Inside Corner: Measure 4” H x 6” D x 6” W with a 2” notch
- Outside Corner: 4” H x 6” D x 10” W
- Termination Bar: 1” W x 8′ L with top sealant lip, 1/4” holes every 8” *(24 gauge) – Drip Edge: 3” W x 8′ L, x 1/4” 30 degrees hemmed outside edge
- Corners: inside and outside with hemmed outside edges
- Stainless steel weep vents 2.5 x 3.5, 3.5 x 3.5
- Passive House High-performance building supply
Non-permeableMechanically-FastenedBothConcrete/MasonryWoodClass 1 - Vapor BarrierYes
Back to products
PROSOCO SS ThruWall Stainless Steel Inside Corner
$1,238.40(100/box)
PROSOCO SS ThruWall Stainless Steel End Dam
$915.60(100/box)

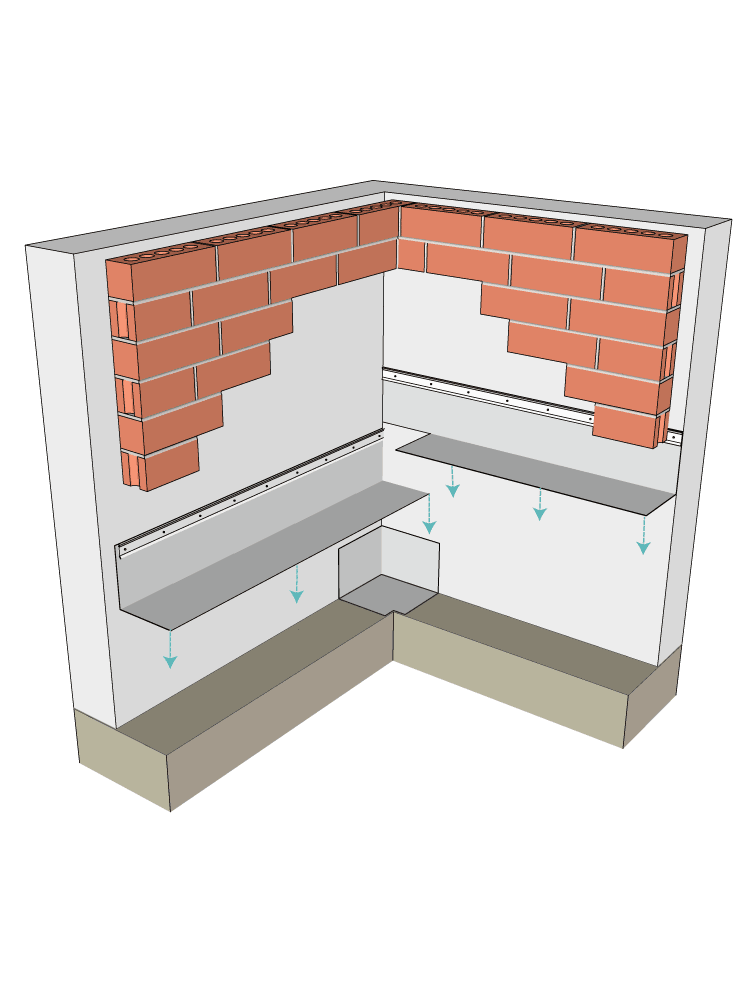

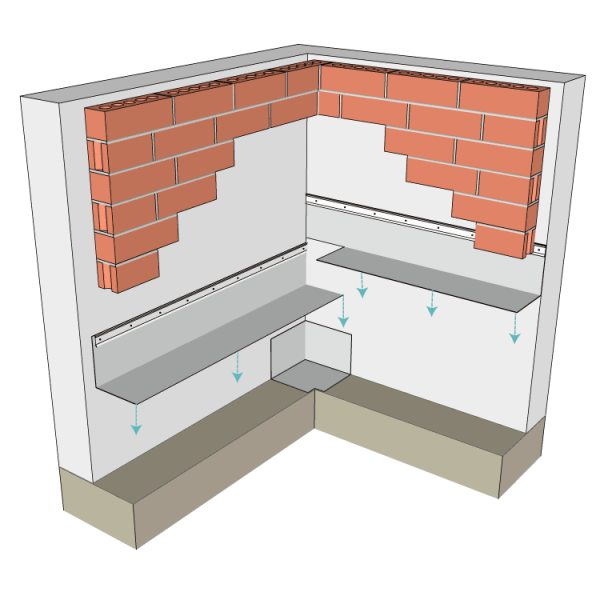

PROSOCO R-Guard’s prefabricated stainless steel end dams, inside corners, and outside corners are recommended with all of R-Guards flashing products. Made of 26 gauge 304 stainless steel. Spot welded and soldered.
Description
Files and Downloads
Additional information
| Air Tightness |
Non-permeable |
|---|---|
| Application Type |
Mechanically-Fastened |
| Flammable |
No |
| Interior Exterior |
Both |
| Moisture Sensitive |
No |
| Substrate Adhesion |
Concrete/Masonry, Metal, Wood |
| Vapor Permeability |
Class 1 – Vapor Barrier |
| Weather Tight |
Yes |
| Brand |
Prosoco |
