PARTEL – KABSEAL PRO SEALING GROMMET

$6.50 – $66.00

Partel

Rigid Airtight Sealing Grommet

Available in a dozen sizes – See Description Below
Manufactured from flexible high quality modified butyl with acrylic adhesive

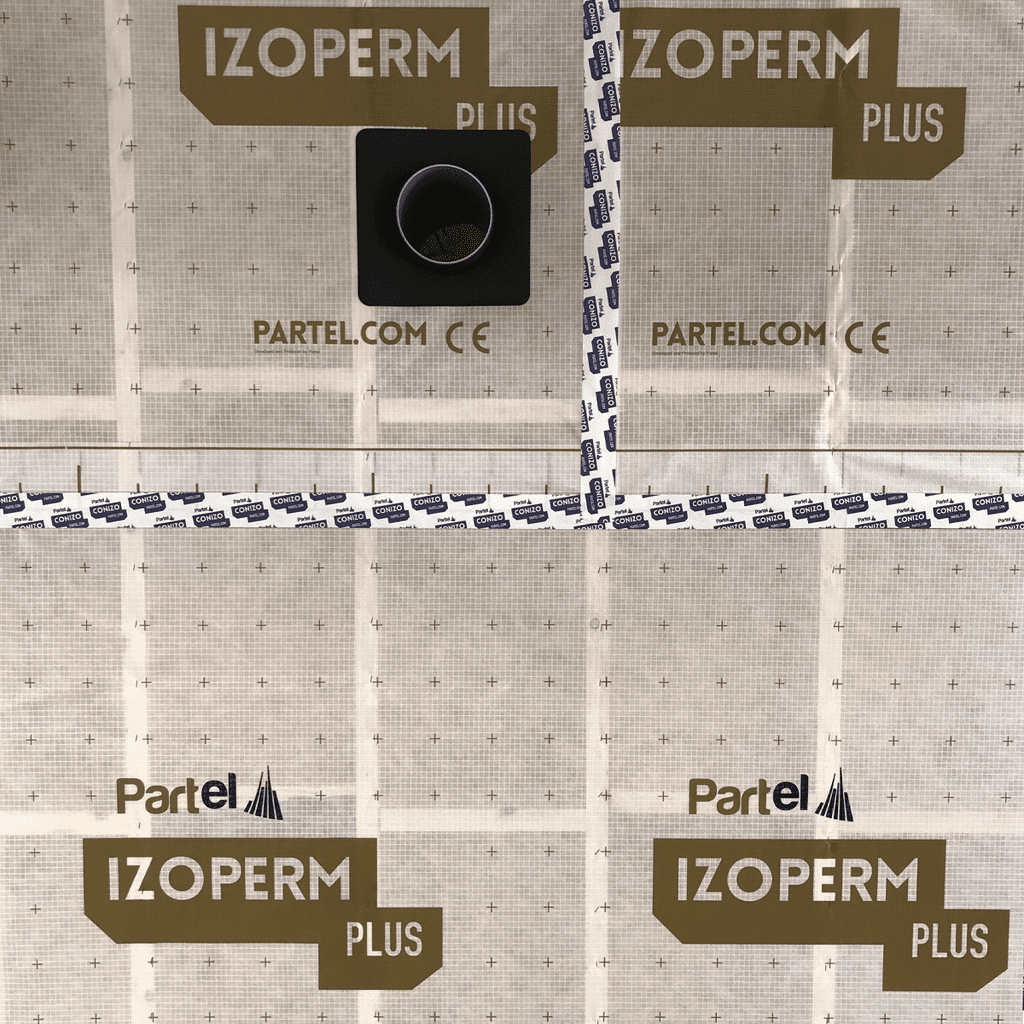

Fast and accurate airtight sealing of penetrations
Temperature resistance – 40°C (104°F) to 150°C (302°F)
Extremely flexible. Molds to shape of pipe or cable
Extremely stable and hermetically sealed
Withstands a damp climate
Lifetime* design – permanent aging resistance due to the strong acrylic adhesive
Environmentally friendly – free of solvents and emulsifiers
Airtight connections to DIN 4108-11

Size

Clear

Add to Spec List

Compare

SKU: KABSEAL 6-10 Categories: Air Sealing Systems, Waterproofing Gaskets Tag: Partel

Description

Connections joints should be free from tensile strain. Acrylic base adhesive tapes are pressure activated, sufficient pressure is required to ensure a long-lasting bond.

A smoother physical substrate will result in optimum adhesion between tape and surface.

It is the responsibility of the applicator to check the substrate for suitability, adhesion tests are recommended in non-standard situations.

Passive House High-performance building supply

SIZES:

KABSEAL PRO 4-8
Diameter: 4-8 mm (5/32″ – 5/16″)
Adhesive sleeve: 150 x 150 mm (5 29/32″ x 5 29/32″)
KABSEAL PRO 2 x 4-8
Diameter: 2 x 4-8 mm (2 x 5/32″ – 5/16″)
Adhesive sleeve: 150 x 150 mm (5 29/32″ x 5 29/32″)
KABSEAL PRO 8-12
Diameter: 8-12 mm (5/16″ – 15/32″)
Adhesive sleeve: 150 x 150 mm (5 29/32″ x 5 29/32″)
KABSEAL PRO 2 x 8-12
Diameter: 2 x 8-12 mm (2 x 5/16″ – 15/32″)
Adhesive sleeve: 150 x 150 mm (5 29/32″ x 5 29/32″)
KABSEAL PRO 15-22
Diameter: 15-22 mm (19/32″ – 7/8″)
Adhesive sleeve: 150 x 150 mm (5 29/32″ x 5 29/32″)
KABSEAL PRO 25-32
Diameter: 25-32 mm (31/32″ – 1 1/4″)
Adhesive sleeve: 150 x 150 mm (5 29/32″ x 5 29/32″)
KABSEAL PRO 40-55
Diameter: 40-55 mm (1 9/16″ – 2 5/32″)
Adhesive sleeve: 230 x 230 mm (9 1/16″ x 9 1/16″)
KABSEAL PRO 50-72
Diameter: 50-72 mm (1 31/32″ – 2 27/32″)
Adhesive sleeve: 230 x 230 mm (9 1/16″ x 9 1/16″)
KABSEAL PRO 72-90
Diameter: 72-90 mm (2 27/32″ – 3 17/32″)
Adhesive sleeve: 230 x 230 mm (9 1/16″ x 9 1/16″)
KABSEAL PRO 90-100
Diameter: 90-100 mm (3 17/32″ – 3 15/16″)
Adhesive sleeve: 320 x 320 mm (1′ 19/32″ x 1′ 19/32″)
KABSEAL PRO 100-110
Diameter: 100-110 mm (3 15/16″ – 4 11/32″)
Adhesive sleeve: 320 x 320 mm (1′ 19/32″ x 1′ 19/32″)
KABSEAL PRO 125-140
Diameter: 125-140 mm (4 29/32″ – 5 1/2″)
Adhesive sleeve: 320 x 320 mm (1′ 19/32″ x 1′ 19/32″)
KABSEAL PRO 150-165
Diameter: 150-165 mm ( 5 29/32″ – 6 1/2″)
Adhesive sleeve: 350 x 350 mm (1′ 1 25/32″ – 1′ 1 25/32″)
KABSEAL PRO 180-195
Diameter: 180-195 mm (7 3/32″ – 7 11/16″)
Adhesive sleeve: 400 x 400 mm (1′ 3 3/4″ – 1′ 3 3/4″)
KABSEAL PRO 200-220
Diameter: 200-220 mm (7 7/8″ – 8 21/32″)
Adhesive sleeve: 400 x 400 mm (1′ 3 3/4″ – 1′ 3 3/4″)

Files and Downloads

Product Spec Sheet

Additional information

Size	150 x 150 mm (5 29/32" x 5 29/32") for hole sizes 4-8mm (5/32" – 5/16") , 150 x 150 mm (5 29/32" x 5 29/32") for 2 hole sizes 4-8mm (5/32" – 5/16") , 150 x 150 mm (5 29/32" x 5 29/32") for hole sizes 8-12mm (5/16" – 15/32") , 150 x 150 mm (5 29/32" x 5 29/32") for 2 hole sizes 8-12mm (5/16" – 15/32") , 150 x 150 mm (5 29/32" x 5 29/32") for hole sizes 15-30mm (5/16" – 15/32") , 150 x 150 mm (5 29/32" x 5 29/32") for hole sizes 15-22mm (19/32" – 7/8") , 150 x 150 mm (5 29/32" x 5 29/32") for hole sizes 25-32mm (31/32" – 1 1/4") , 230 x 230 mm (9 1/16" x 9 1/16") for hole sizes 40-55mm (1 9/16" – 2 5/32") , 230 x 230 mm (9 1/16" x 9 1/16") for hole sizes 50-72mm (1 31/32" – 2 27/32") , 230 x 230 mm (9 1/16" x 9 1/16") for hole sizes 72-90 mm (2 27/32" – 3 17/32") , 320 x 320 mm (1' 19/32" x 1' 19/32") for hole sizes 90-100 mm (3 17/32" – 3 15/16") , 320 x 320 mm (1' 19/32" x 1' 19/32") for hole sizes 100-110 mm (3 15/16" – 4 11/32") , 320 x 320 mm (1' 19/32" x 1' 19/32") for hole sizes 125-140 mm (4 29/32" – 5 1/2") , 350 x 350 mm (1' 1 25/32" – 1' 1 25/32") for hole sizes 150-165 mm ( 5 29/32" – 6 1/2") , 400 x 400 mm (1' 3 3/4" – 1' 3 3/4") for hole sizes 180-195 mm (7 3/32" – 7 11/16") , 400 x 400 mm (1' 3 3/4" – 1' 3 3/4") for hole sizes 200-220 mm (7 7/8" – 8 21/32")

Size

150 x 150 mm (5 29/32" x 5 29/32") for hole sizes 4-8mm (5/32" – 5/16")

150 x 150 mm (5 29/32" x 5 29/32") for 2 hole sizes 4-8mm (5/32" – 5/16")

150 x 150 mm (5 29/32" x 5 29/32") for hole sizes 8-12mm (5/16" – 15/32")

150 x 150 mm (5 29/32" x 5 29/32") for 2 hole sizes 8-12mm (5/16" – 15/32")

150 x 150 mm (5 29/32" x 5 29/32") for hole sizes 15-30mm (5/16" – 15/32")

150 x 150 mm (5 29/32" x 5 29/32") for hole sizes 15-22mm (19/32" – 7/8")

150 x 150 mm (5 29/32" x 5 29/32") for hole sizes 25-32mm (31/32" – 1 1/4")

230 x 230 mm (9 1/16" x 9 1/16") for hole sizes 40-55mm (1 9/16" – 2 5/32")

230 x 230 mm (9 1/16" x 9 1/16") for hole sizes 50-72mm (1 31/32" – 2 27/32")

230 x 230 mm (9 1/16" x 9 1/16") for hole sizes 72-90 mm (2 27/32" – 3 17/32")

320 x 320 mm (1' 19/32" x 1' 19/32") for hole sizes 90-100 mm (3 17/32" – 3 15/16")
