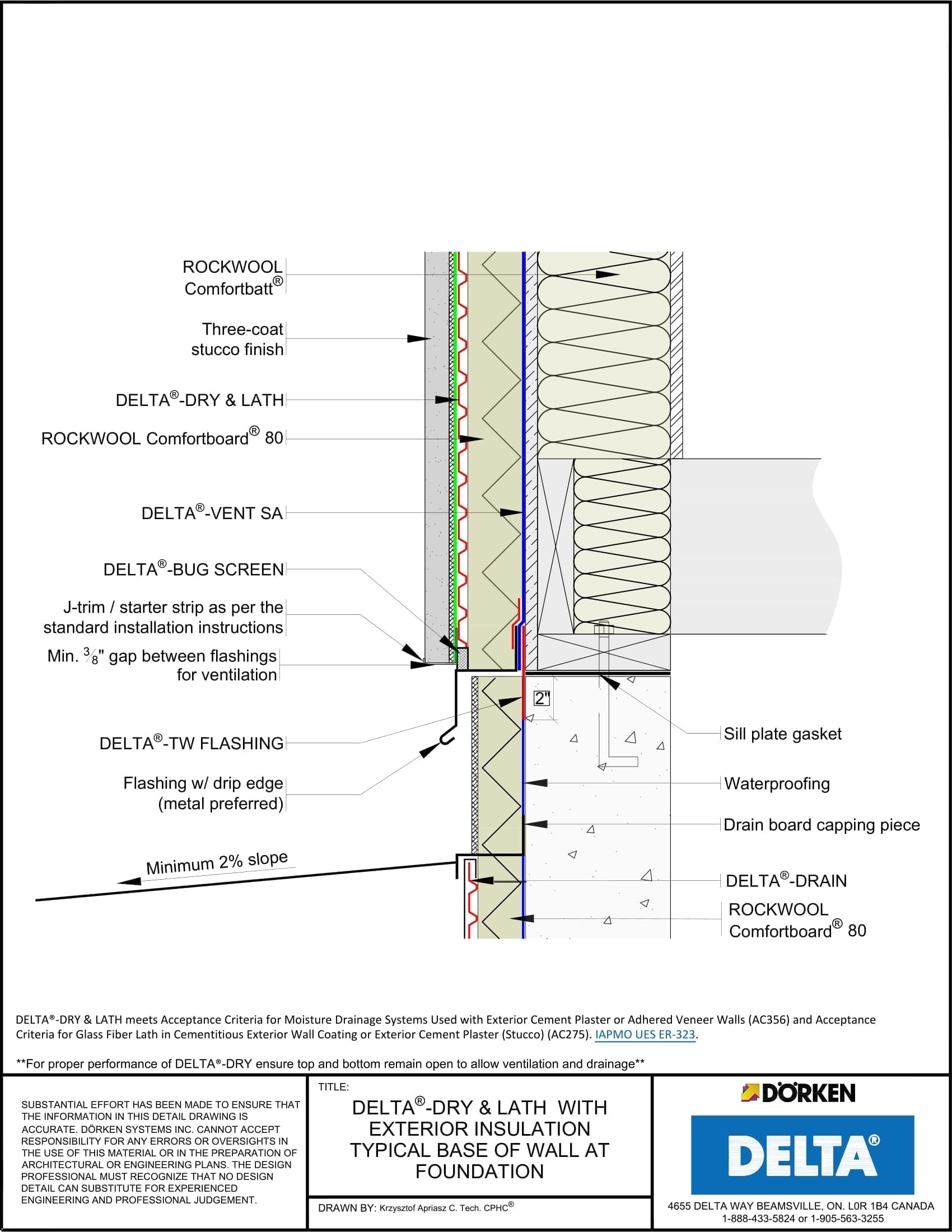

Delta® Dry & Lath + Rockwool Residential Exterior Insulation Wall Assembly – Base of Wall at Foundation

Dörken Systems Inc. The DELTA®-DRY & LATH is a 2-in-1 product that combines the proven technology of the DELTA®-DRY rain screen with an innovative fiberglass lath for a complete, one-step moisture control and lath system in one.

Rockwool ROCKWOOL Comfortboard® 80 is a rigid stone wool board designed for continuous insulation applications. A non-structural sheathing product, Comfortboard 80 provides increased thermal performance to the building envelope. Available in 1.5" thick 2' x 4' sheets, 120pc/bundles for 960sq ft. 2" thick 2' x 4' sheets, 90pc/bundles for 720 sq ft. 3" thick 2' x 4' sheets, 66pc/bundles for 528 sq ft.

Delta Dorken The vapor permeable, self-adhering air- and water-resistive barrier comes with BIM models, which allows you to quickly and easily design your building with confidence.

Dörken Systems Inc.   DELTA®-BUG SCREEN is used to prevent the infiltration of bugs while allowing free movement of air and drainage of bulk water.

Dörken Systems Inc. DELTA®-DRAIN is a highly effective drainboard that controls the flow of below-grade water.

Dörken Systems Inc. DELTA®-TW FLASHING is a premium, durable, self-adhering flashing designed for through-wall applications. It adheres tenaciously to seal the interface between common building substrates, including lintels and brick ledges, and to all DELTA® air- and water-resistive barrier membranes.
