Home Membranes & Tape Systems WickRight Kit 4 – Low-Slope Roof Perimeter Vent and Flashing Kit

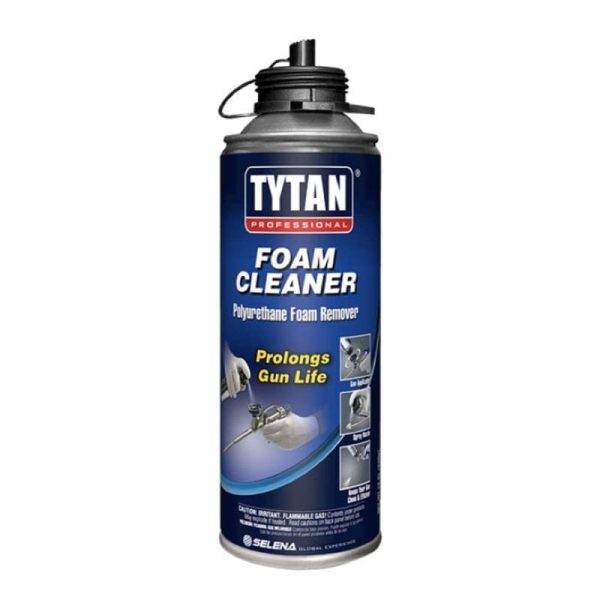

Tytan Foam Cleaner - Pack of 12 $89.04
Back to products
WickRight Kit 3A – Parapet Drip Edge/Receiver Clip and Low-Slope Roof Vent Kit for Capstones on 8″ wide Masonry Walls and Perimeter of Flat Roofs From $492.75

WickRight Kit 4 – Low-Slope Roof Perimeter Vent and Flashing Kit

From $601.60

WickRight

WickRight Low-Slope Roof Vent™ Kit #4
Exhausts moisture vapor and eliminates condensation build-up in roof systems!
Buying the Kit makes it easy!

Patented Low-Slope Roof Vent exhausts heat from under the roof membrane and beneath the plywood roof deck and interstitial roof space. It eliminates condensation build-up, significantly extendng the life of roof membranes, plywood sheathing and insulation. It’s an interior rain screen for walls, allowing moisture vapor to exit and separates the roof space from the masonry to keep it dry.

WickRight Low-Slope Roof Vent KIT #4 includes:

  • WickRight Low-Slope Roof Vent — (choose height – 12″, 16″ or 48″) – 5 included
  • WickRight Double Caulk Pocket 3-piece Counter Flashing System – 2 included
  • WickRight Bug Screen – 5 included

5 x WickRight Low-Slope Roof Vent

$40.00

WickRight Low-Slope Roof Vent™ exhausts moisture vapor and eliminates condensation build-up in roof systems.

Patented Low-Slope Roof Vent exhausts heat from under the roof membrane and beneath the plywood roof deck and interstitial roof space. This eliminates condensation build-up, which significantly extends the life of roof membranes, plywood sheathing and insulation. Low-Slope Roof Vent also provides an interior rain screen for walls, allows moisture vapor to exit and separates the roof space from the masonry to keep it dry.
Sold in 4 foot widths in 3 different heights, 12", 16" and 48" high Custom sizing available See long description below for Ordering Tips
Clear

2 x WickRight Double Caulk Pocket 3-Piece Metal Counter Flashing

$170.80

Double Caulk Pocket 3-Piece Counter Flashing is specifically designed to protect WickRight Low-Slope Roof Vent when installed without other WickRight Passive Ventilation products.

Stainless Steel in stock. Can be fabricated in Kynar painted galvanized steel, call for details.

Available in 10 ft lengths Order needed length plus 10%

5 x WickRight Vented Bug Screen

$12.00
WickRight Vented Bug Screen discourages insect nesting. Required with installation of Low-Slope Roof Vent behind our Standard Counter Flashing, Offset Counter Flashing and Double Caulk Pocket Counter Flashing Place bug screen behind counter flashing and secure with fastener. Sold in 4 foot lengths

Add to Spec List

Compare
Categories: Flashing, Membranes & Tape, Rain Screens, Systems, Wall Assembly
  • Description
  • Files and Downloads
  • Additional information
  • Vendor Info
  • More Products
Description

WickRight Low-Slope Roof Vent™ Kit #4 – sold in 20′ lengths
Exhausts moisture vapor and eliminates condensation build-up in roof systems!
Buying the Kit makes it easy!

This Kit covers 20ft.

Purchase Kit #4 when you are installing WickRight Low-Slope Roof Vent independently of other WickRight passive ventilation products.

WickRight Low-Slope Roof Vent Kit #4 includes:

  • WickRight Low-Slope Roof Vent™ (5 included)
    Sold in 4 foot lengths
    Choose height – 12″, 16″ or 48″
    Custom heights available
  • WickRight Double Caulk Pocket 3-piece Counter Flashing System™ (2 included)
    Sold in 10 foot lengths
    Stainless Steel in stock
    Copper and Kynar painted galvanized steel available, call to discuss
    Protects Low-Slope Roof Vent from rain and snow when installed independently of other WickRight passive ventilation/counter flashing systems
  • WickRight Bug Screen (5 included)
    Sold in 4 foot lengths
    Keeps out insects

How it Works:
Patented WickRight
Low-Slope Roof Vent exhausts heat from under the roof membrane and beneath the plywood roof deck and interstitial roof space. It eliminates condensation build-up, which significantly extends the life of roof membranes, plywood sheathing and insulation. Low-Slope Roof Vent also provides an interior rain screen for walls, allows moisture vapor to exit and separates the roof space from the masonry to keep it dry.

Low-Slope Roof Vent works in conjunction with WickRight Parapet Vents, including Vented Receiver Clip, WickRight Metal Coping Vent, WickRight Clay Coping Vent. We recommend combining parapet and roof passive ventilation systems to maximize drying effect.

Consider also installing our Roof Vent extension (add to your order for an additional $25 per 100 ft) into the roof system to separate insulation from masonry walls – call for details.

Installation Info:
  • Install vertically against parapet wall at the junction of wall and roof deck on low-slope roof buildings.
  • Modified Bitumen can be torched directly to the 1/2″ Polyiso Coverboard side of WickRight Low-Slope Roof Vent.
  • No primer needed
  • No roof termination bar is needed
  • Low-Slope Roof Vent should also be installed against Mechanical and Stairwell buildings to maximize passive ventilation of the entire roof system. Call to discuss the construction of your roof top buildings. Buildings with siding require different counter flashing profile.

Installation training available, call 312-720-1467 for details

How to Order:

  • Measure length and height of interior side of parapet wall/roof perimeter, add 10%
  • Choose height, 12″, 16″ or 48″ – can be cut in field or order custom height
  • Order kit in 10 foot lengths
    If your roof perimeter is 125′, order 130′ or 13 kits

Lead time/Shipping:
Low-Slope Roof Vent is typically in stock, however, should fabrication be needed, it takes 7-10 business days. Shipping is typically via FedEx LTL Freight, 5-10 business days.

Shipping and Handling for 100′ of 12″ and 16″ x 4′ panels costs $200-$250 depending on destination.
Shipping and Handling for 100′ of 4′ x 4′ panels costs $400-$450 depending on destination.
We will provide a shipping quote upon receipt of order.

Just In Time Delivery available in Chicagoland for $100 when delivered independently of other WickRight Passive Ventilation product orders.

Print Friendly, PDF & Email
Files and Downloads

WickRight Low-Slope Roof Vent

(2 MB)

Additional information
Application Type

Mechanically-Fastened

Brand

WickRight

Vendor Info

Vendor Information

  • Store Name: WickRight
  • Vendor: WickRight
  • Address: 16365 West Arlyd Road
    Prairie View, IL 60069
  • No ratings found yet!
More Products
PermeableAdhesiveExteriorBrickConcreteYes
Compare
Quick view
Add to cart

WickRight Capstone Vented Drip Edge

$63.00
Mechanically-FastenedExterior
Compare
Quick view
Add to cart

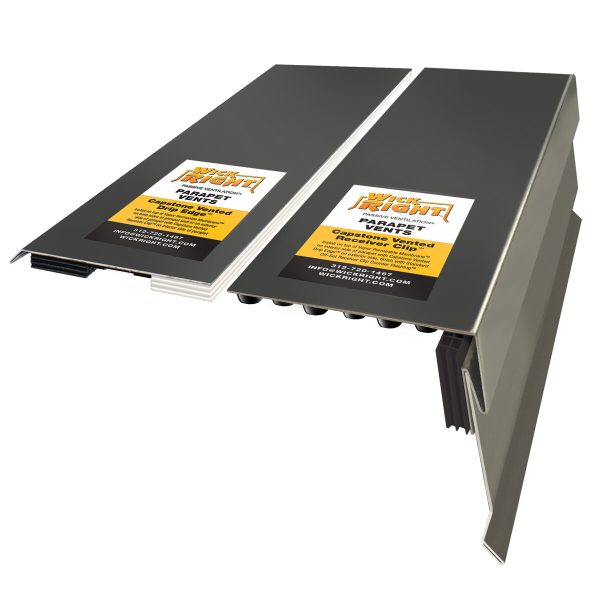

WickRight Capstone Vented Receiver Clip
