Blaugelb – Plinth Thermal Insulation Profile EPS
$3.10 – $10.18
The Blaugelb Plinth Thermal Insulation Profile EPS is made from a high-density EPS (expanded polystyrene) and offers the best possible heat and moisture protection on front doors and balcony doors made from wood, wood/aluminium, aluminium and plastic.
Plinth Thermal Insulation Profile EPS
The Blaugelb Plinth Thermal Insulation Profile EPS is made from a high-density EPS (expanded polystyrene) and offers the best possible heat and moisture protection on front doors and balcony doors made from wood, wood/aluminium, aluminium and plastic. The Blaugelb Plinth Thermal Insulation Profile EPS is sturdy, durable and is exceptionally quick and easy to fit.
The Blaugelb Plinth Thermal Insulation Profile EPS provides thermal insulation and reduces the scope of conventional plastic profiles to form thermal bridges. It is dimensionally stable, 100 % free of HCFCs, HFCs and HBCDs and tested to be low in pollutants according to EMICODE EC1 Plus. The Blaugelb Plinth Thermal Insulation Profile EPS was specially developed for fitting as a substructure thermal insulation profile under thresholds.

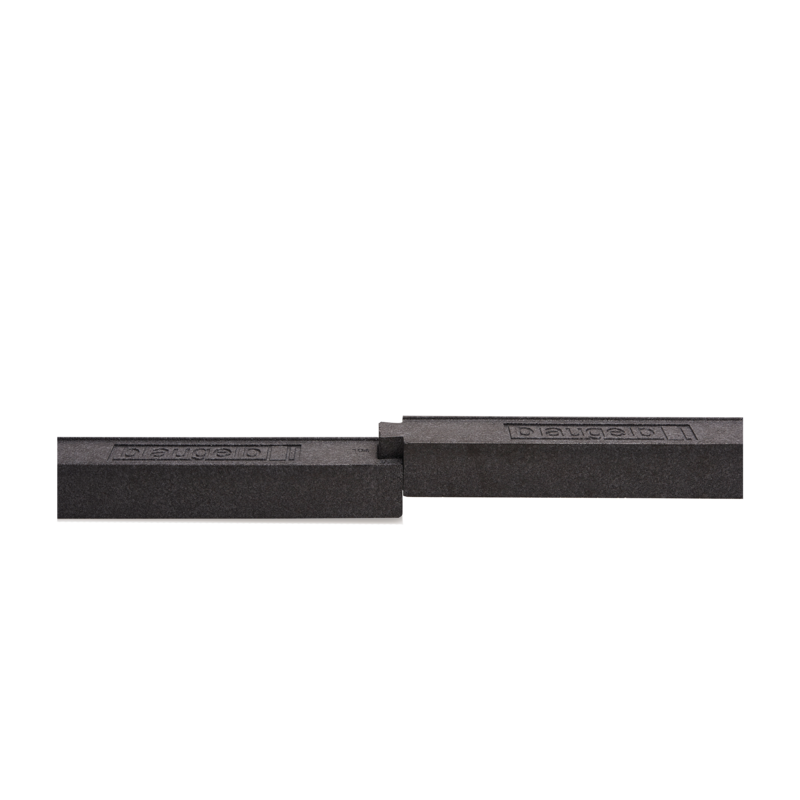

By virtue of the innovative dovetail joint, the Blaugelb Plinth Thermal ÂInsulation Profile EPS can be positively interlocked, to create any desired length. The dovetail joint reduces the amount of waste, possibly even avoiding waste altogether, while the 1,175 mm length of the individual profiles is ideal for transport and storage (Europallet). Thanks to its low weight and compact dimensions, the Blaugelb Plinth Thermal Insulation Profile EPS is unbeatably quick and straightforward to process.
With the tongue and groove joint, the two blaugelb Plinth Thermal Insulation Profiles EPS which are to be joined have a groove on one edge and a tongue on the other edge and can be coupled in height one under the other.
Product benefits:
Benefits of plinth thermal insulation using the blaugelb Plinth Thermal Insulation Profile EPS:
- Effective insulation offering high potential savings
- Plinth thermal insulation permanently eliminates energy weak points on components installed on floor slabs and enhances indoor comfort
- Plinth thermal insulation using the blaugelb Plinth Thermal Insulation Profile EPS prevents damage caused by moisture and mould
- This product is Cradle to Cradle Certified® at the Silver level
- Passive House High-Performance building material
Benefits of dovetail joints:
- Quick and easy to fit
- Mobile – for workshop or building site use
- No metal fasteners required
- Can be infinitely extended in length and coupled in height
- No waste
| Material: | High-density EPS (expanded polystyrene), high ductility |
| Colour: | Grey |
| Compressive load bearing capacity at max. total deformation of 2%: | 1,260kg/dm² |
| Compressive load bearing capacity at 60 x 40 mm: (blaugelb Spacer Block) |
5,800 N |
| Compressive load bearing capacity at 210 x 53 mm: (blaugelb Shim Block HST) |
15,510 N |
| Fire behaviour:
DIN4102-1:1998-05 |
B2 |
| Fire behaviour:
DINEN13501-1:2019-05 |
Class E |
| Thermal conductivitynominal value?10: DINEN12667:2001-05 |
0.0403 W/m*k |
| Water vapour diffusion resistance:
DINENISO12086 |
228 µ |
| Air permeability:
EN12207 |
Class 4 |
| Bending strength:
DINEN12089 |
?2,490kPa |
| Compression stress (2%) compression:
DIN EN DIN EN 13163:2017 / EN 826:2013-05 |
?1,435kPa |
| Shear strength: DINENISO14130 |
0.217 N/mm2 |
| Dimensional strength:
DINISO75-1 |
Short-term up to +95°C Long-term up to +85°C |
| Dimensional stability: DINEN13163:2015-04 |
Very high, including outdoor weathering |
| Water absorption after 28days under water: DIN12087 |
? 0.5vol.% |
| Screw withdrawal values:
blaugelb Frame Screw Fix FK-T30 7.5 x 42mm sfs window sill screw 4.5 x 35mm |
FRK AZ1,200N
FRK AZ510N |
| Compatibility with conventional building materials: | Compatible, except for solvents, solvent-bearing materials and materials that are not polystyrene-compatible |
| Ageing resistance: | Mould-proof, does not rot |
| Waste code: | Code no. 170604 Code no. 170904 |
| Width |
100mm ,30mm ,50mm ,80mm |
|---|---|
| Thickness |
64mm ,66mm ,74mm |
