Zola Windows: Thermo Clad Panoramic View

Thermo Clad PanoramicView’s extra slim, 4″ frame is the same width for fixed and operable units, allowing for consistent glass lines. The facade may be installed to cover the entire frame on the outside, resulting in a frameless appearance, even when operable.

Click here to request a price quote for this product.

Description

THERMO CLAD PANORAMIC VIEW

Using a hidden operable sash, Thermo Clad Panoramic View fixed and operable windows cannot be distinguished from each other on the outside. Using a slightly larger frame than Classic Clad Panoramic View, Thermo Clad Panoramic View achieves the discerning look of consistency

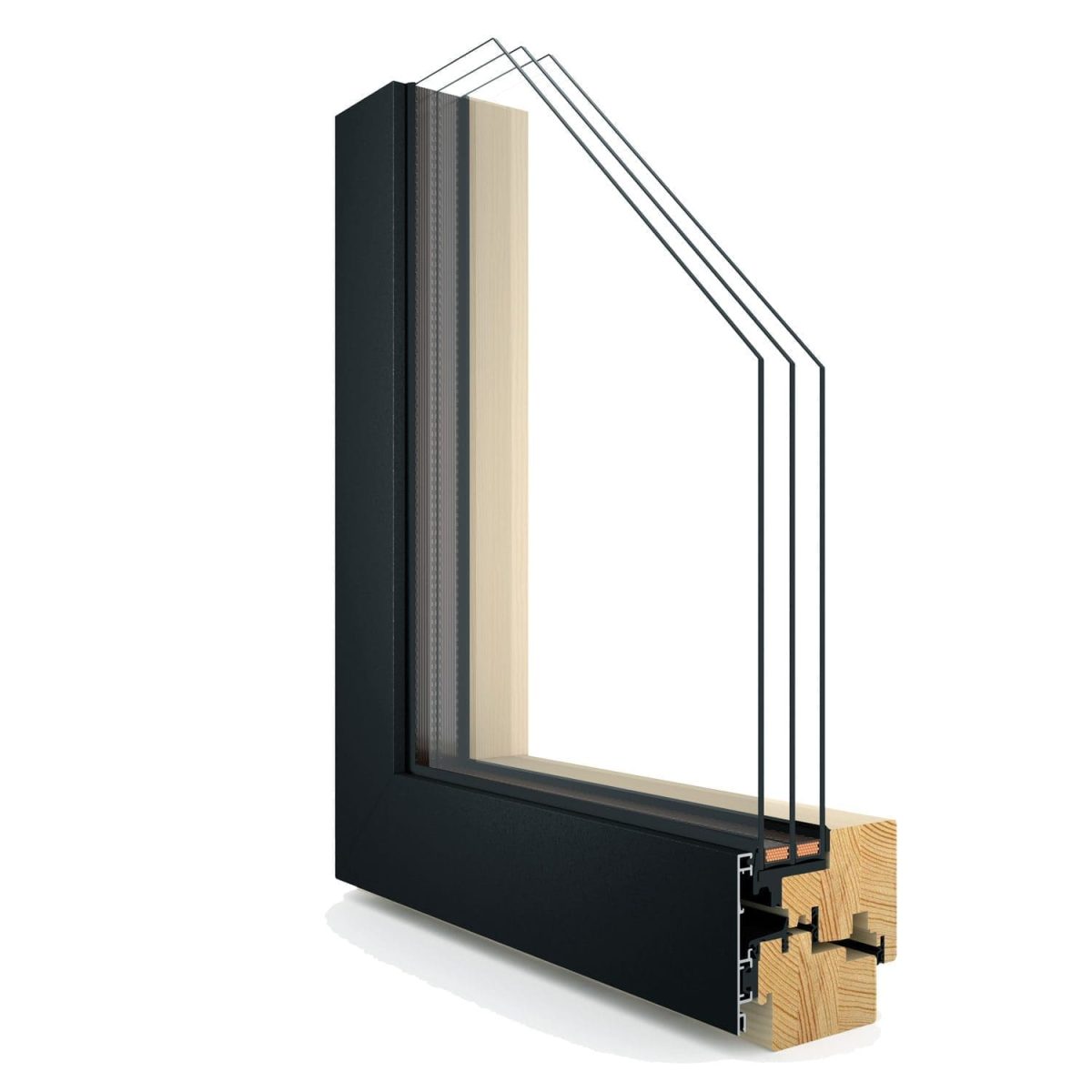

with the high thermal frame and glass performance. A laminated, warp-resistant, solid timber construction frame. Triple compression air seals and exterior aluminum rain-screen cladding mounted on rails for ultimate durability and rot resistance. High-performance building supply

TIMBER & FINISH OPTIONS HARDWARE

Timbers available: finger jointed pine (base timber), European multi-point locking system with

Clear Pine, Meranti, European White Oak, and Larch.

Interior Finish Options: RAL painted timber, or standard set of interior stains.

Exterior Finish Options: RAL Standard, RAL FS Premium, Tactile Series, and Anodized options.

CONFIGURATIONS AVAILABLE

Fixed
Tilt-turn, Tilt-only, Turn-only, Tilt-first Fixed/Operable combinations French window opening
Lift-Slide. Doors up to eight locking points on windows and four points on entry doors. Concealed hinges standard.

SIZING

Min frame width = 450mm (17.7”)
Max frame width = 1521mm (59.8”)
Min frame height = 402mm (16”)
Max balcony door height = 2743mm (108”)

Files and Downloads

Additional information

Brand	Zola
R-Value	> 6
U-Value (BTU/hFft)	>0.1
Min. Frame Width	17.7"
Min. Frame Height	16"
Max. Frame Width	59.8"
Max. Frame Height	108"
Glazing	Double , Quadruple , Triple
Configuration	Facade Systems , Fixed , LiftSlide , Tilt , Tilt & Turn
