Ephoca – Wall-Mounted Pro
$4,188.00 – $7,172.00
Wall Mounted Pro units are ideal for any area with free wall space. The onboard touch controller simplifies use and installation.
Ephoca Wall-Mounted Pro units are slim and sleek. The Wall Mounted Pro can be mounted high or low with a factory-supplied bracket, making installation quick and simple. Special adapters enable the unit to be installed perpendicular to an outside wall, used with many louver styles, or even vented through an existing window frame with no construction required. An electronically controlled louver with an auto-swing function distributes airflow comfortably and uniformly. Wall Mounted Pro units are ideal for any area with free wall space. The onboard touch controller simplifies use and installation. Ephoca Wall Mounted Pro is available with an optional ERV module. The extremely powerful exhaust fan with 0.45″ WC enables flexibility in venting and higher efficiency with better performance than the standard Wall Mounted unit.
Key Features
- Compact unit
- Easy to install
- Paintable sleek cabinet
- Electronically controlled air louver
- Always-on back-lit LED dims after 15 seconds of inactivity
- Auto-restart
- Washable filters
- High-performance building supply
- Passive House building supplies
Options
- Optional 900 or 1,800w electric heat

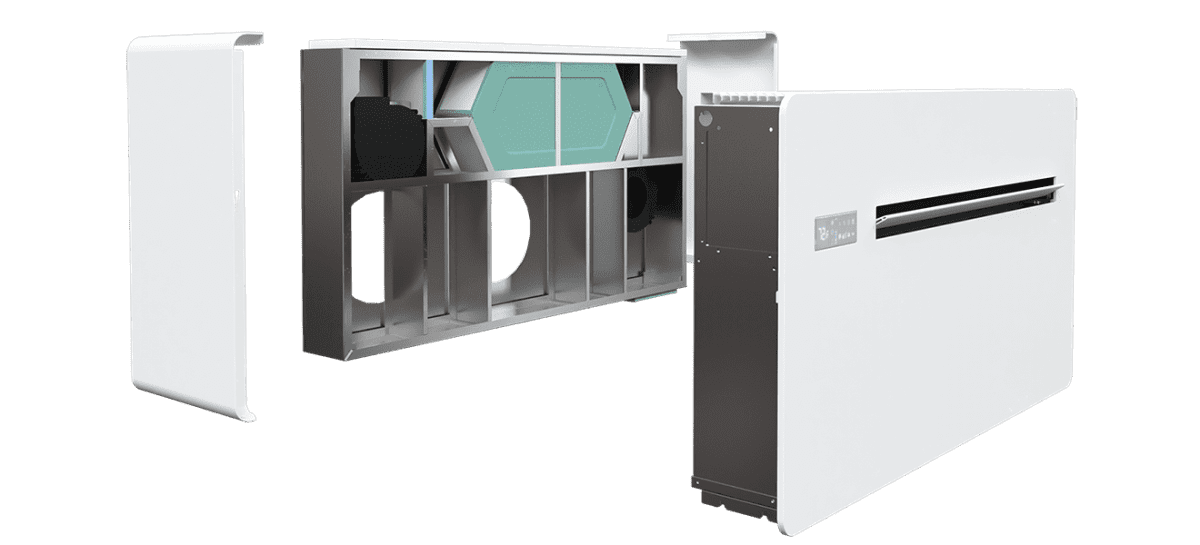

- With or without ERV
- 115v or 230V
- Hardwire or LCDI cord
- R32 or R410a
Operation
- Cool, heat, dehumidify, and auto
- Selectable fan speeds, low, med, high and auto
- Fresh air ERV — field configurable amount of fresh air
Mounting
- High wallLow wall
- Sidewall with adapter
- Multiple adapter options

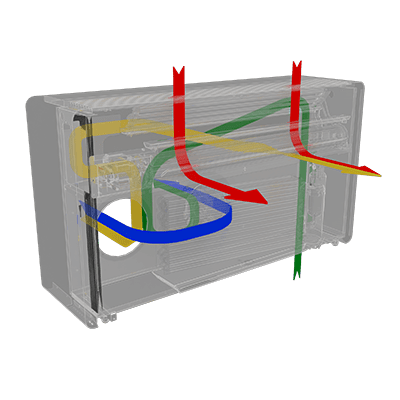

Airflow
- Dual 8€² external vents
- Available 0.45″ WC for external ducting, adapters, and louvers
Included controls
- Onboard touch controller
Optional controllers
- Wall Mounted Advanced touchscreen with a 7-day program
- Wall Mounted Basic touch controller
- 3rd party thermostat interface
- BACnet/Modbus interface
- WiFi app for android and iPhone
*Note: Orders of less than 10 units include a parts-only warranty. Orders of 10 units or more include a 10-year parts and labor warranty. See documentation for more details.
| Brand |
Ephoca |
|---|---|
| Heating Add-On |
Heat Pump Only ,900W Resistance Heater ,1800W Resistance Heater |
| Integrated ERV |
No ,Yes |
| Refrigerant |
R-32 ,R-410a |
| Power Connection |
LCDI Power Cord ,Hardwired |
| Volts |
115v ,230v |
