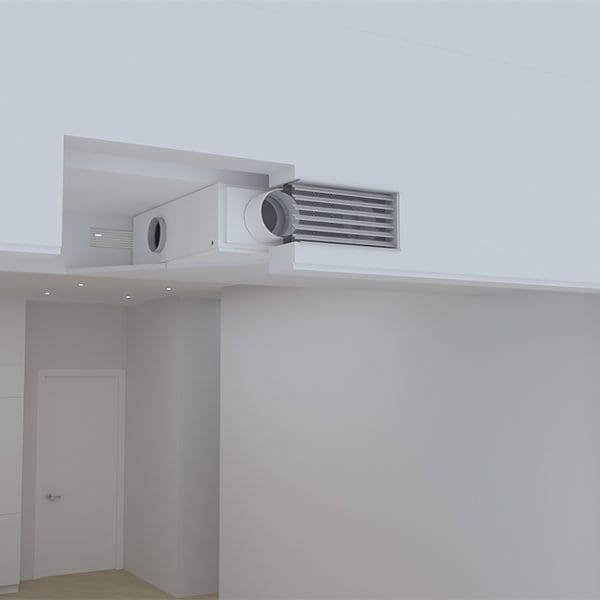

Ephoca Ceiling Ducted can be discreetly installed above a ceiling and is ideal for single or multi-room applications. The return can be from the sides or the bottom for maximum flexibility. With up to 0.6€³ external static pressure, this unit can be used where ducting is required. Use with any interior grille and louver to provide additional design flexibility. A bathroom exhaust can connect to the dedicated stale air exhaust. Ceiling Ducted units are available with or without the integrated ERV.
Key Features
- Compact unit
- Easy to install
- High ESP for internal and external ducting

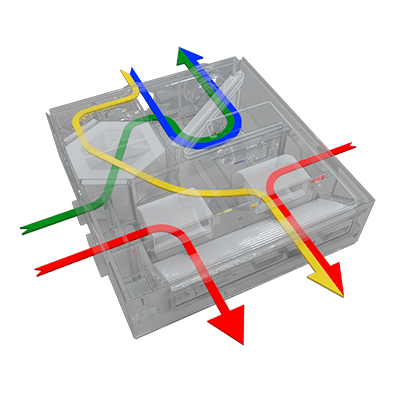

- Bottom or side returns
- Bathroom exhaust connection
- Auto-restart
- Washable filters
- High-performance building supply
- Passive House building supplies
Options
- Optional 900 or 1,800w electric heat
- With or without ERV
- 115v or 230V
- Hardwire or LCDI cord
- R32 or R410a
Operation
- Cool, heat, dehumidify, and auto
- Selectable fan speeds, low, med, high and auto
- Fresh air ERV €“ field configurable amount of fresh air
Mounting
- Ceiling
- Underfloor
- Airflow
- Dual 8€² external vents
- Available 0.7€³ WC for external ducting, adapters, and louvers
- Available 0.6€³ WC for internal ducting and louvers.
Included controls
- Onboard touch controller (on bottom of unit) used primarily for maintenance. A wall-mounted or wireless controller is required.
Optional controllers
- Wall Mounted Advanced touchscreen with a 7-day program
- Wall Mounted Basic touch controller
- 3rd party thermostat interface
- BACnet/Modbus interface
- WiFi app for android and iPhone
| Cooling | Range | Btu/h | 3,400 €“ 14,000 |
| Nominal | Btu/h | 8,300 | |
| Heating 47°F | Range | Btu/h | 4,200 €“ 15,000 |
| Nominal | Btu/h | 8,200 | |
| Heating 13°F | Range | Btu/h | 3,200 €“ 7,000 |
| Nominal | Btu/h | 6,300 | |
| Heating 5°F | Range | Btu/h | 2,700 €“ 6,700 |
| Nominal | Btu/h | 5,700 |
