Ephoca – Wall-Mounted
$3,838.00 – $6,822.00

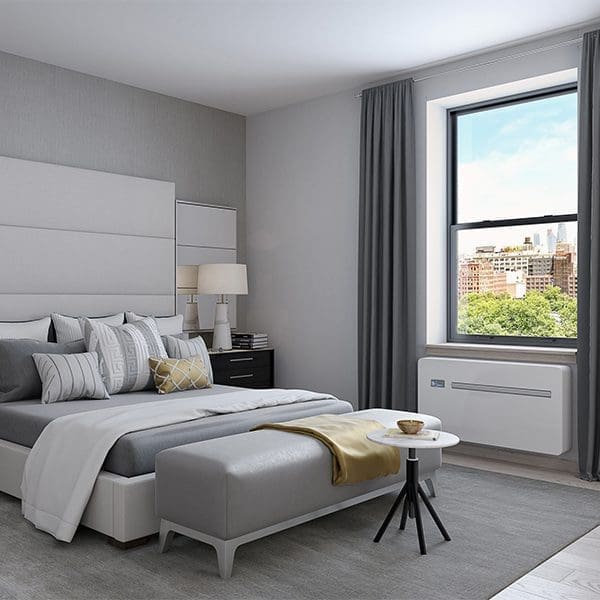

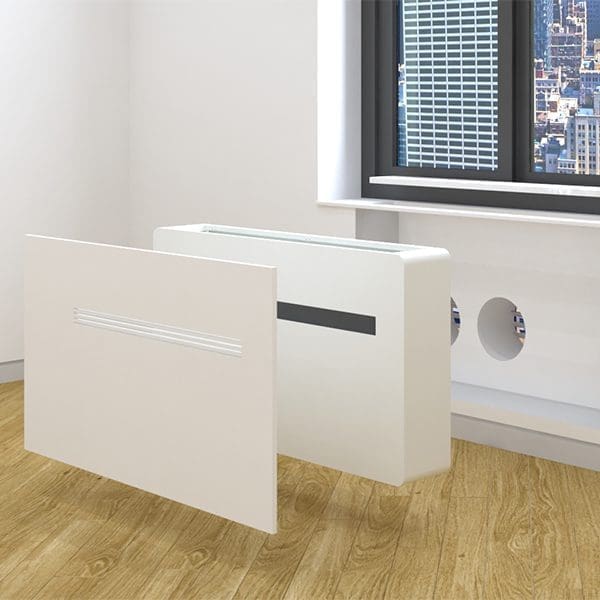

Ephoca Wall-Mounted units are slim and sleek. Wall Mounted units can be mounted high or low with a factory supplied bracket, making installation quick and simple.

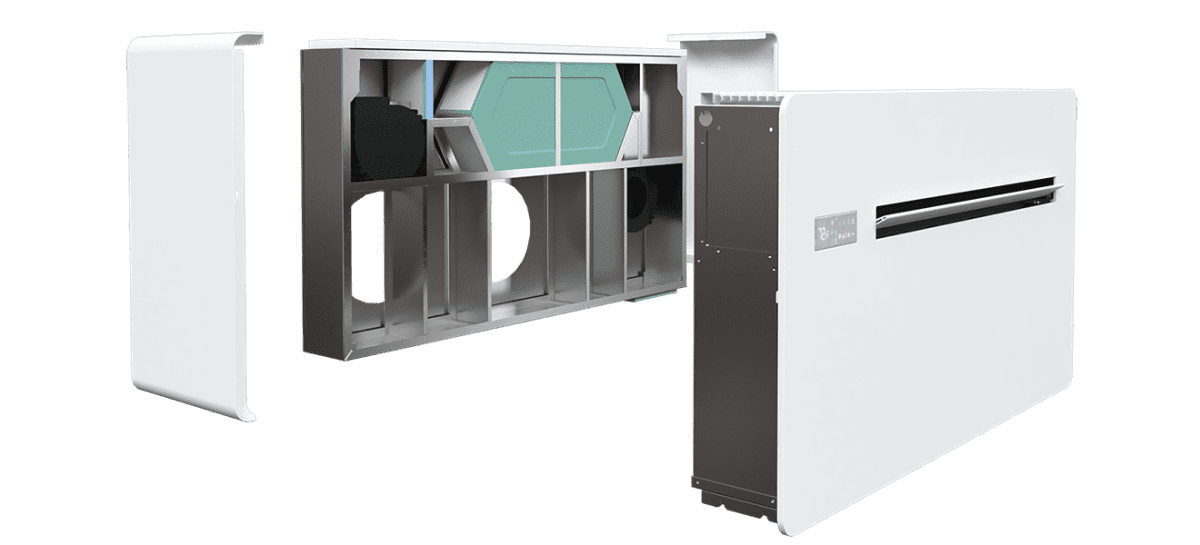

Ephoca Wall-Mounted units are slim and sleek. Wall Mounted units can be mounted high or low with a factory supplied bracket, making installation quick and simple. An electronically controlled louver with an auto-swing function distributes airflow comfortably and uniformly. Wall Mounted units are ideal for any area with free wall space. The onboard touch controller simplifies use and installation. AIO Wall Mounted units are available with an optional ERV add-on component. Special adapters enable the unit to be installed perpendicular to an outside wall.
Key Features
- Compact unit
- Easy to install
- Paintable sleek cabinet
- Electronically controlled air louver
- Always-on back-lit LED dims after 15 seconds of inactivity
- Auto-restartWashable filters
- High-performance building supply
- Passive House building supplies
Options
- Optional 900 or 1,800w electric heat
- With or without ERV115v or 230V
- Hardwire or LCDI cord
- R32 or R410a
Operation
- Cool, heat, dehumidify, and auto
- Selectable fan speeds, low, med, high and auto
- Fresh air ERV — field configurable amount of fresh air
Mounting
- High wall
- Low wall
- Sidewall with adapter
Airflow
- Dual 6€² external vents
- Available
Included controls
- Onboard touch controller
Optional controllers
- Wall Mounted Advanced touchscreen with a 7-day program
- Wall Mounted Basic touch controller
- 3rd party thermostat interface
- BACnet/Modbus interface
- WiFi app for android and iPhone
| Cooling | Range | Btu/h | 3,400 — 15,500 |
|---|---|---|---|
| Nominal | Btu/h | 8,500 | |
| Heating 47° | Range | Btu/h | 3,500 — 10,100 |
| Nominal | Btu/h | 7,900 | |
| Heating 13° | Range | Btu/h | 3,000 — 5,200 |
| Nominal | Btu/h | 4,600 | |
| Heating 5° | Range | Btu/h | 2,800 — 4,700 |
| Nominal | Btu/h | 4,300 |
*Note: Orders of less than 10 units include a parts-only warranty. Orders of 10 units or more include a 10-year parts and labor warranty. See documentation for more details.
| Brand |
Ephoca |
|---|---|
| Heating Add-On |
Heat Pump Only ,900W Resistance Heater ,1800W Resistance Heater |
| Integrated ERV |
No ,Yes |
| Refrigerant |
R-32 ,R-410a |
| Power Connection |
LCDI Power Cord ,Hardwired |
| Volts |
115v ,230v |
