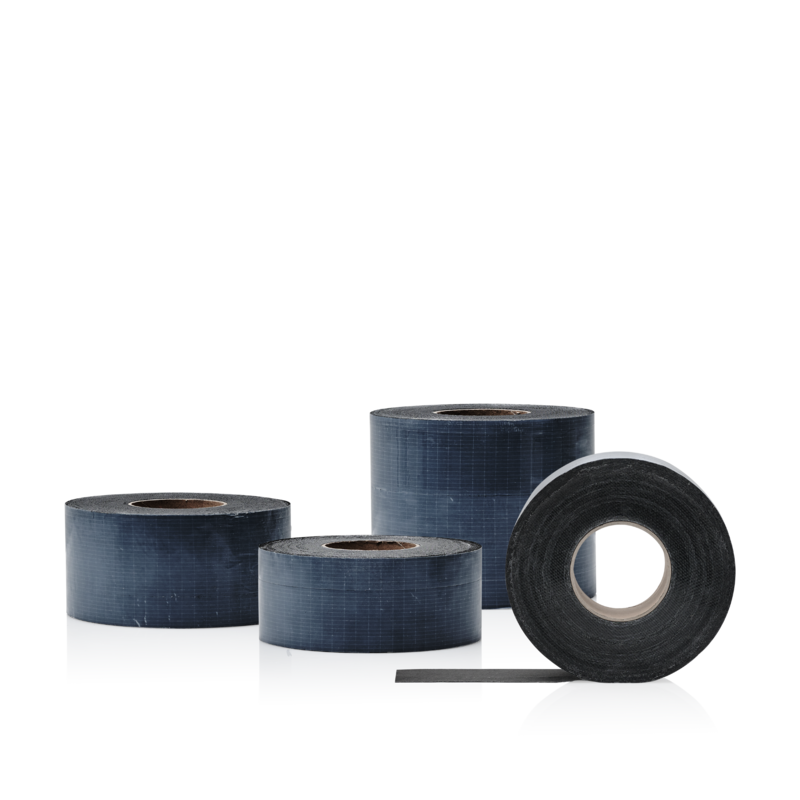

Foil Outside SL1050 Power One
The Blaugelb Foil Outside SL1050 Power One is used on the outer level of connecting and expansion joints for windows and doors during restoration as well as for new construction to ensure sealing that is windtight, watertight to driving rain and open to vapour diffusion.
The foil can also readily be used as a second sealing level beneath the window sill.
Blaugelb Foil Outside SL1050 Power One is available in various widths. It can thus be adapted to the profile systems starting at 64 mm and used to seal threshold profiles and open hollow chambers. The advantage: no warm, moist air enters the profiles, condensation and the formation of thermal bridges are avoided.
In the widths from 75 mm to 350 mm, blaugelb Foil Outside SL1050 Power One is ideal for sealing window joints and façade parts.
Combined with the blaugelb Foil Inside SL1050 Power Plus, it results in the perfect sealing of joints on the inside and outside.
Product benefits:
- Airtight, windtight and watertight to driving rain as well as open to vapour diffusion for the outer level according to DIN 18355
- With fixed sd-value ≤ 0.5 m
- Brilliantly high adhesive strength on the standard construction substrates and window and door profiles* without additional foil adhesive
- Fully adhesive on one side, can be used on one side
- For sealing threshold profiles and open profile parts
- Can be plastered, bonded and painted over, hidden installation
- UV-resistant for 12 months
- Watertight against driving rain over 1,050 Pa
- Waterproof
- Flexible and elastic, compensates for joint movements
- Moisture and temperature-resistant
- Easy to process with perforated protective paper
- Joint sealing compliant with the “Leitfaden zur fachgerechten Montage” [Guideline for Proper Installation] and the German Building Energy Law (GEG)
- EMICODE EC1 Plus certified
- Manufactured under an ISO 9001/EN 29001-compliant quality system
- Passive House High-Performance building material
| Material: | Special plastic foil with fleece backing, adhesive on one side |
| Building material class: DIN13501 |
Class E |
| Adhesive: | Heavy-duty special adhesive |
| sd-value:
DINENISO12572 |
sd-value: ≤ 0.5 m |
| Joint permeability coefficient:
DINEN12114 |
a < 0.1 m3/[h * m * (daPa)2/3], no measurable air passage |
| Watertightness against driving rain:
DINEN1027 |
≥ 1,050 Pa |
| Watertightness: | 2,000Pa |
| UV stability: | Approx. 12 months |
| Temperature resistance: | From approx. —40°C to +90°C |
| Ambient temperature during handling: | —5°C to +45°C if the foil is at the storage temperature |
| Compatibility with adjacent building materials: | Satisfied |
| Flexibility at —23°C: | No break, no cracks |
| Dimension tolerance: DIN 7715 T5 P3 |
Satisfied |
| Storage temperature: | at +5°C to +20°C |
| Storage life: | 12 months with dry storage in unopened original packaging |
| Colour: | black |
