Airtight Sleeves
Self-sealing airtight grommets for cables, pipes, and conduit penetrations through air barriers. Available in four sizes covering 8 mm to 140 mm penetrations.
$59.90
Lead Time: 5 business days
Shipping: Quoted after checkout
Airtight Sleeves

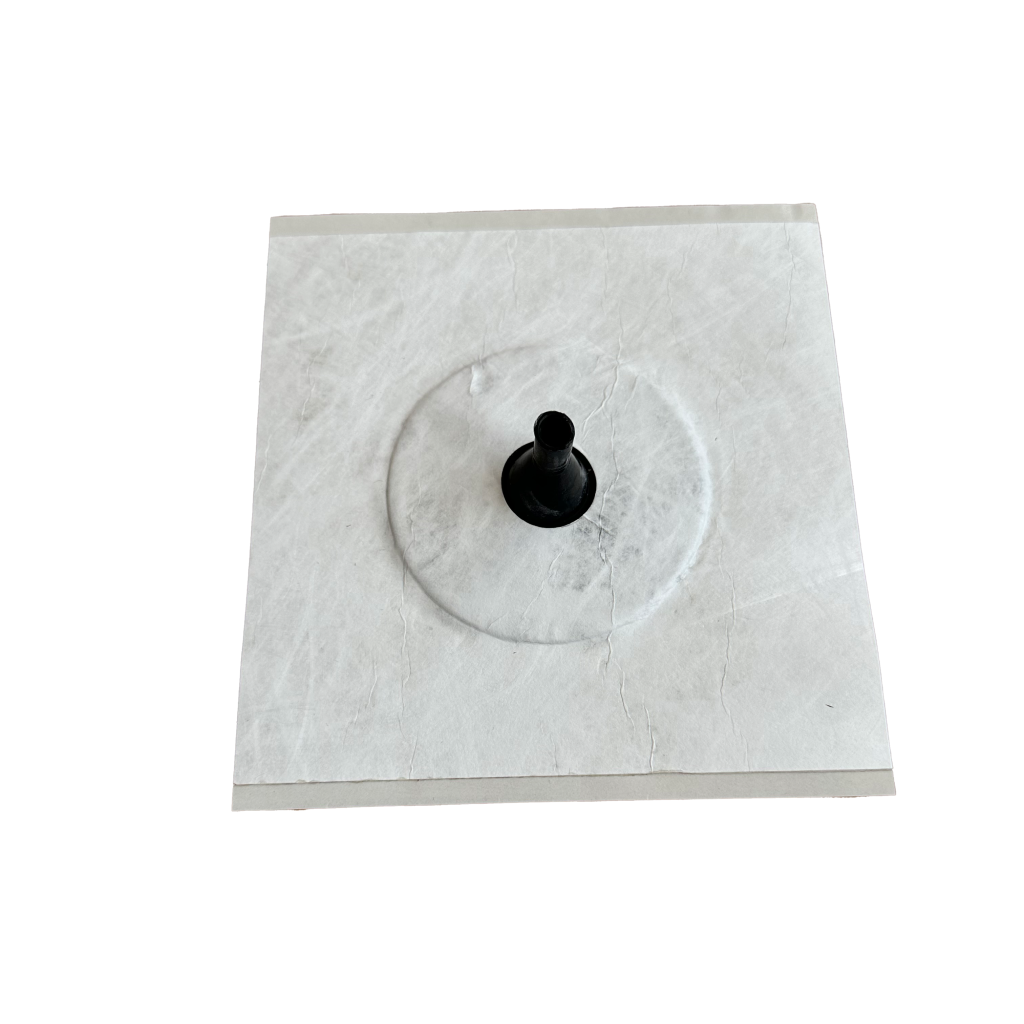

Airtight Sleeves are self-sealing grommets used to maintain an airtight seal where cables, pipes, conduit, and other round penetrations cross an air barrier or vapor retarder. Each sleeve has an adhesive flange that bonds to the membrane and a stretchable diaphragm that grips the penetrating element.
Available sizes
- 8–12 mm (0.3–0.5 in) – 5.9 in square flange, 10 sleeves per box, 297 boxes per pallet
- 15–22 mm (0.6–0.86 in) – 5.9 in square flange, 10 sleeves per box, 297 boxes per pallet
- 100–110 mm (3.9–4.3 in) – 12.6 in square flange, 4 sleeves per box, 96 boxes per pallet
- 125–140 mm (4.9–5.5 in) – 12.6 in square flange, 4 sleeves per box, 96 boxes per pallet
Key Specifications
| Property | Specification |
|---|---|
| Hole Size Range | 100-110, 125-140, 15-22, 8-12 |
| Sheet Size | 150x150, 320x320 |
| Sleeves per Pack | 10, 4, 10, 4 |
