Zola Windows: Thermo uPVC

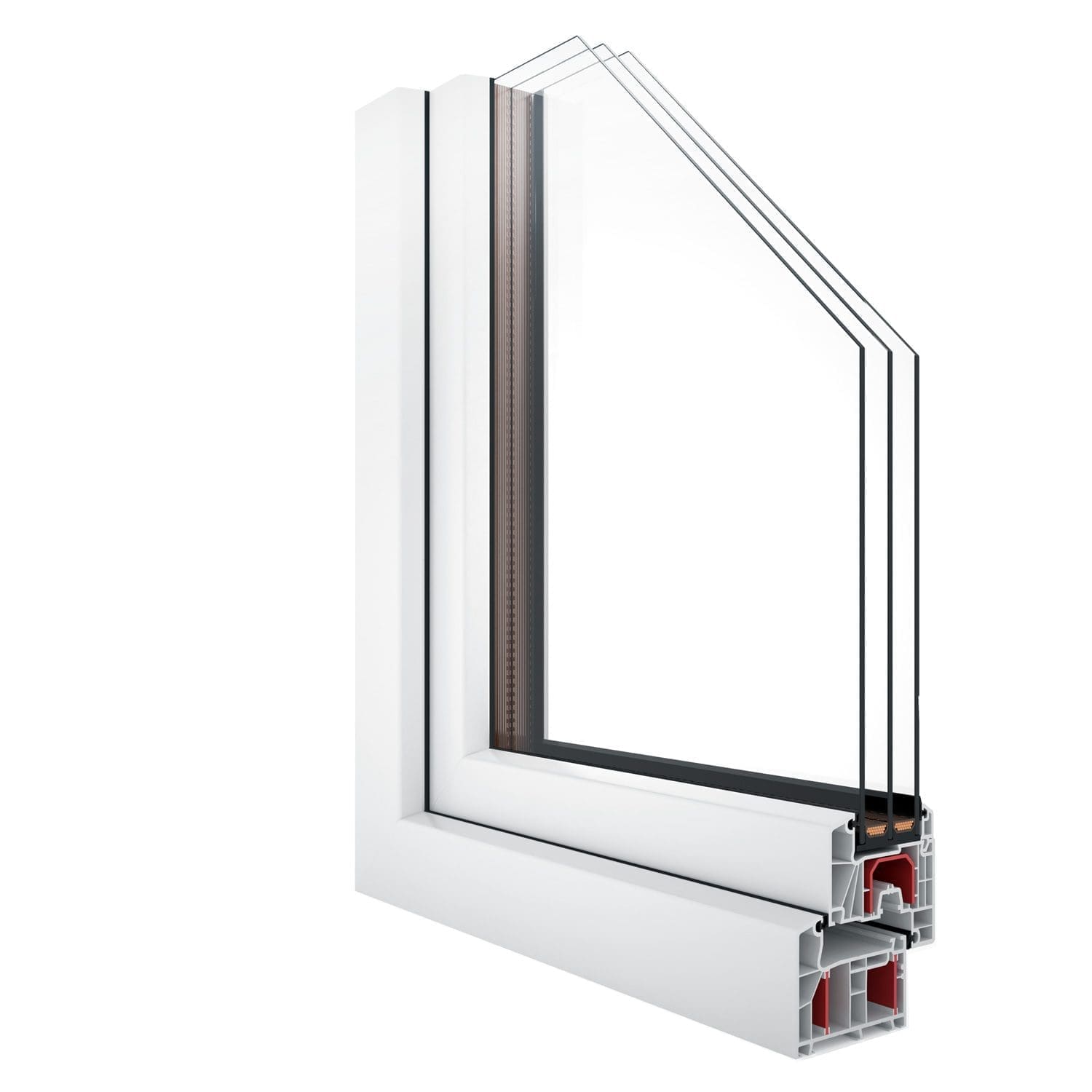

Thermo uPVC is a high-performance choice for economical Passive House, net-zero projects, and large multifamily developments, just shy of the R-8 performance of Thermo Plus uPVC. Features an 85mm deep fiberglass-reinforced frame and steel-reinforced sashes.
THERMO uPVC
A high-performance choice for economical Passive House, net-zero projects, and large multifamily developments. Large operable window sizes available up to 96” in height, and fixed windows in single frames up to 118”. High-performance building supply
FINISH OPTIONS
White profiles inside and out
Color foil applied to inside, outside, and/or both
CONFIGURATIONS AVAILABLE
Fixed
Tilt-turn, Tilt-only, Turn-only, Tilt-first Fixed/Operable combinations French window opening
Inswing and Outswing Entry Doors Lift-Slide Doors
HARDWARE
European multi-point locking system with up to eight locking points on windows and four points on entry doors. Visible hinges are standard but concealed hinges are available.
SIZING
Min frame width = 457mm (18”)
Min frame height = 457mm (18”)
Max balcony door height = 2743mm (108”)
| Brand |
Zola |
|---|---|
| R-Value |
> 6 |
| PSI-Value (BTU/hr·ft·°F) Glazing spacer psi-value |
0.02312 |
| U-Value (BTU/h*F*ft) |
>0.1 |
| Air Permeability |
<1 |
| Min. Frame Width |
18" |
| Min. Frame Height |
18" |
| Max. Frame Height |
108" |
| Glazing |
Double ,Triple |
| Configuration |
Fixed ,Glass Doors ,LiftSlide ,Modern Doors ,Panel Doors ,Tilt ,Tilt & Turn |
