THERMO CLAD

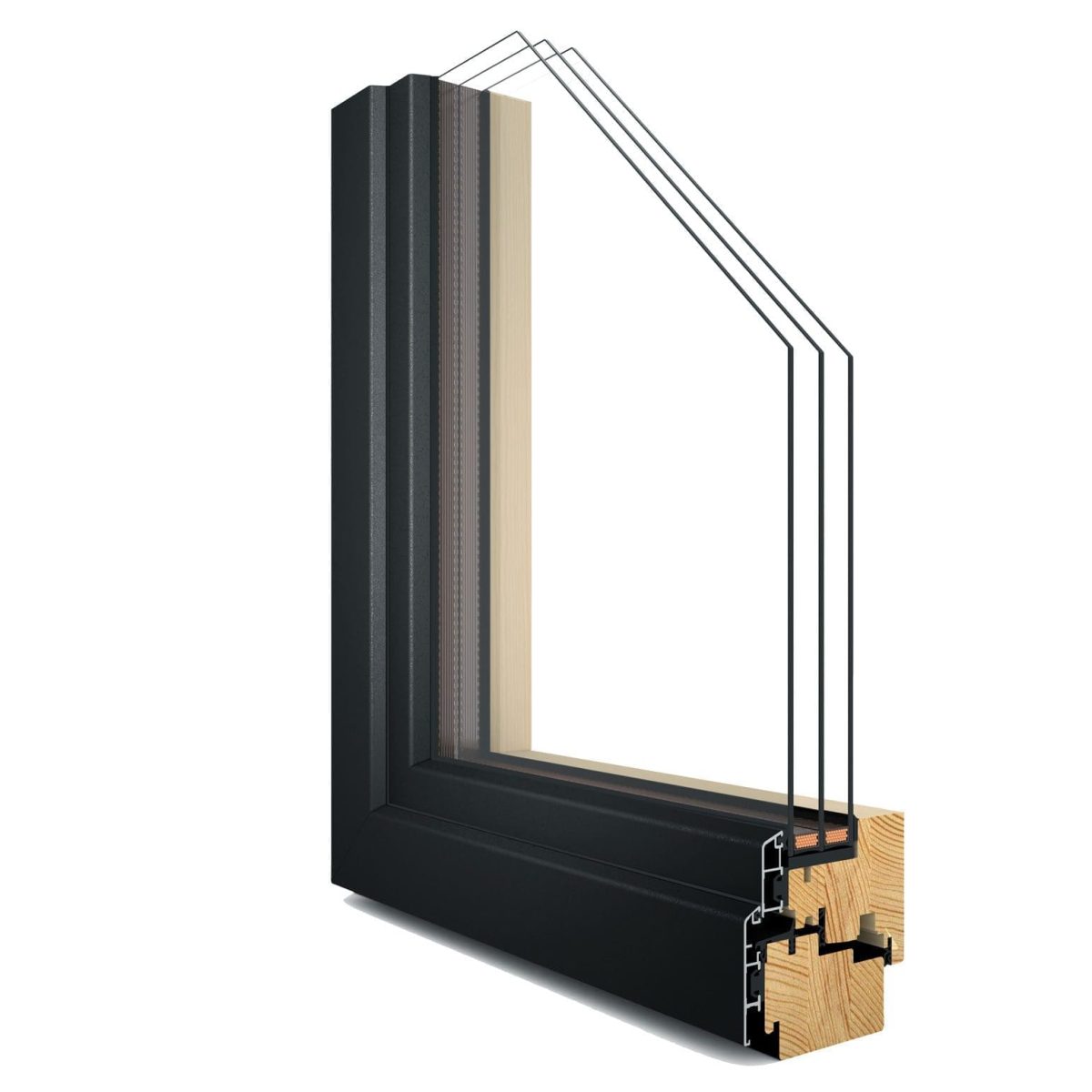

Our most popular, aluminum-cladding timber windows and doors. Featuring multiple cladding profiles for projects ranging from classic to contemporary. All Thermo Clad windows and doors are standard with triple-pane glazing. Using 88mm frames allows for immense spans of glass in both fixed and operable configurations. A laminated, warp-resistant, solid timber construction frame. Triple compression air seals and exterior aluminum rain-screen cladding mounted on rails for ultimate durability and rot resistance. High-performance building supply

TIMBER & FINISH OPTIONS

Timbers available: finger jointed pine (base timber), Clear Pine, Meranti, European White Oak,
and Larch.

Interior Finish Options: RAL painted timber, or standard set of interior stains.

Exterior Finish Options: RAL Standard, RAL FS Premium, Tactile Series, and Anodized options.

CONFIGURATIONS AVAILABLE

Fixed
Tilt-turn, Tilt-only, Turn-only, Tilt-first Fixed/Operable combinations French window opening
Inswing Terrace Doors
Inswing and Outswing Entry Doors Lift-Slide Doors
Breeze Panel Doors (outswing only)

HARDWARE

European multi-point locking system with up to eight locking points on windows and four points on entry doors. Concealed hinges standard.

SIZING

Min frame width = 450mm (17.7”) Min frame height = 402mm (16”)

Files and Downloads

Product Spec Sheet

Additional information

Brand	Zola
R-Value	> 6
U-Value (BTU/hFft)	>0.1
Air Permeability	<1
Glazing	Double , Quadruple , Triple
Min. Frame Width	17.7"
Min. Frame Height	16"
Configuration	Awning , Breeze Panel , Facade Systems , Fixed , Glass Doors , LiftSlide , Modern Doors , Outswing , Panel Doors , Tilt , Tilt & Turn
PSI-Value (BTU/hr·ft·°F) Glazing spacer psi-value	0.023
